SOLAX AELIO-P50B200
SKU: F20S302
EAN: 2010000032633
| Manufacturer | |
|---|---|
| AFCI | |
| Net depth | |
| Maximum output current | |
| Rated power | |
| MPPT | |
| Capacity | |
| Charging current | |
| Discharge current | |
| Net width | |
| Net height | |
| Warranty | |
| CN | 85076000 |
Price
58 292,96 €
Gross
Gross
Datasheet Solax AELIO-P50B100 - P60B200
Solax-AELIO-P50B100-P60B200-Datasheet.pdf
Product details
| Manufacturer | |
|---|---|
| AFCI | |
| Net depth | |
| Maximum output current | |
| Rated power | |
| MPPT | |
| Capacity | |
| Charging current | |
| Discharge current | |
| Net width | |
| Net height | |
| Warranty | |
| CN | 85076000 |
Lead time for orders is 60–90 days

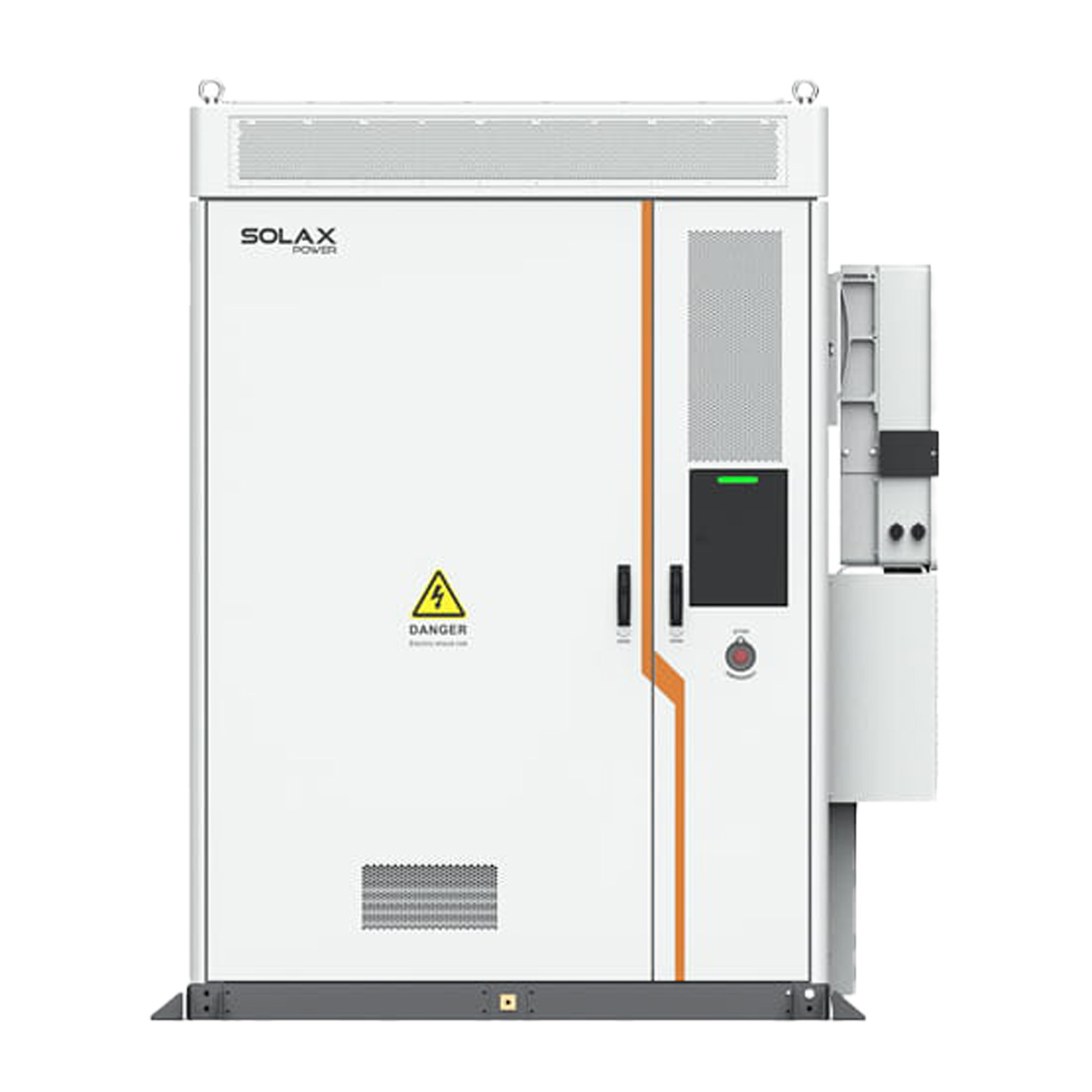

SolaX Power ESS-AELIO Hybrid Cabinet
The SolaX Power ESS-AELIO hybrid cabinet is an advanced energy storage system designed for intelligent management and optimization of energy use in larger residential properties and commercial applications. It combines a high-performance three-phase inverter (50 kW or 60 kW) with a high-capacity energy storage (up to 200 kWh per cabinet, expandable to the MWh range), offering reliability, safety and flexible adaptability to a variety of needs.
Key features of the SolaX Power ESS-AELIO Hybrid Cabinet:
- Intelligent energy management: Advanced algorithms based on artificial intelligence (AI) that provide accurate state-of-charge (SOC) estimation, readiness to participate in virtual power plants (VPP with SolaX Cloud, OpenADR) and Smart Schedule and Smart Scene functions to optimize energy use.
- High performance and system scalability: Inverter power of 50 kW or 60 kW, battery cabinet capacity up to 200 kWh (LFP) with modular expansion to the MWh level, and the option to oversize PV input up to 200%.
- Comprehensive safety and reliability: Four-layer fire protection, high ingress protection ratings (IP66 for the inverter, IP55 for the cabinet), integrated Type II surge protection devices (SPD on both AC and DC sides) and optional arc-fault protection (AFCI).
- Operational flexibility and adaptability: Ability to operate on-grid and off-grid (EPS emergency power), support for unbalanced three-phase output and an extendable modular design for easy capacity upgrades.
- Optimized photovoltaic performance: Global MPP scanning to maximize energy yield and support for up to 6 MPP trackers with a maximum input current of 40 A per tracker (depending on model), enabling efficient use of large PV installations.
Who is this a good choice for?
The SolaX Power ESS-AELIO hybrid cabinet is an excellent choice for owners of larger residential properties, small and medium-sized businesses, and other organizations seeking a comprehensive, scalable energy management solution. With intelligent features, high performance, advanced protections, and the ability to operate both on-grid and off-grid, this system helps maximize self-consumption, ensure continuity of power supply, and actively participate in modern energy systems such as virtual power plants (VPP).
Datasheet Solax AELIO-P50B100 - P60B200
Solax-AELIO-P50B100-P60B200-Datasheet.pdf
| Parameter | AELIO-P50B100 (Cabinet) | AELIO-P50B200 (Cabinet) | AELIO-P60B100 (Cabinet) | AELIO-P60B200 (Cabinet) | X3-AELIO-49.9K (Inverter) | X3-AELIO-49.9K-P (Inverter) | X3-AELIO-50K (Inverter) | X3-AELIO-60K (Inverter) | X3-AELIO-61K (Inverter) | |
|---|---|---|---|---|---|---|---|---|---|---|
| DC SIDE (Cabinet) | ||||||||||
| Max. recommended PV array power (kWp) | 100 | 100 | 120 | 120 | ||||||
| Max. PV input voltage (V) | 1000 | |||||||||
| Start-up voltage (V) | 200 | |||||||||
| Rated PV input voltage (V) | 650 | |||||||||
| MPPT voltage range (V) | 160 – 950 | |||||||||
| Number of MPP trackers / strings per MPP tracker | 5/2 | 5/2 | 6/2 | 6/2 | ||||||
| Max. input current per MPPT (A) | 40 | |||||||||
| PV array short-circuit current ISC per MPPT (A) | 50 | |||||||||
| AC SIDE (Cabinet) | ||||||||||
| Rated output power (kW) | 50 | 50 | 60 | 60 | ||||||
| Rated output current (A) | 72,2 | 72,2 | 86,6 | 86,6 | ||||||
| Max. apparent power (kVA) | 55 | 55 | 66 | 66 | ||||||
| Max. continuous output current (A) | 83,6 | 83,6 | 100,3 | 100,3 | ||||||
| Rated AC voltage (V) | 3/N/PE, 220/380 V; 3/N/PE, 230/400 V | |||||||||
| Rated AC frequency (Hz) | 50 Hz / 60 Hz | |||||||||
| Adjustable power factor range | – 1 (0.8 lagging to 0.8 leading) | |||||||||
| THDi (rated power) (%) | < 3% | |||||||||
| BATTERY SIDE (Cabinet) | ||||||||||
| Battery type | LFP/280Ah | |||||||||
| Rated battery capacity (kWh) | 100 | 200 | 100 | 200 | ||||||
| Rated battery voltage (V) | 358,4 | 716,8 | 358,4 | 716,8 | ||||||
| Battery voltage range (V) | 280 – 408,8 | 560 – 817,6 | 280 – 408,8 | 560 – 817,6 | ||||||
| Rated charge/discharge current (A) | 140 | |||||||||
| Max. charge/discharge current (A) | 160 A (80 A × 2) | |||||||||
| GENERAL (Cabinet) | ||||||||||
| Dimensions (with inverter) (W × H × D) (mm) | 1310 × 2300 × 1140 | 2070 × 2420 × 1200 | 1310 × 2300 × 1140 | 2070 × 2420 × 1200 | ||||||
| Dimensions (without inverter) (W × H × D) (mm) | 1020 × 2300 × 1150 | 1680 × 2420 × 1200 | 1020 × 2300 × 1150 | 1680 × 2420 × 1200 | ||||||
| Weight (with inverter) (kg) | 1600 | 2800 | 1600 | 2800 | ||||||
| Weight (without inverter) (kg) | 1500 | 2700 | 1500 | 2700 | ||||||
| Operating ambient temperature range (°C) | -30 – 55°C | -30 – 50°C | -30 – 55°C | -30 – 50°C | ||||||
| Relative humidity (%) | 0 – 95% RH (non-condensing) | |||||||||
| Max. operating altitude (m) | 3000 | |||||||||
| Cooling concept | Intelligent air cooling | |||||||||
| Ingress protection | Cabinet: IP55; Inverter: IP66 | |||||||||
| Fire protection | Aerosol (optional: Novec1230) / Water | |||||||||
| Topology | Non-isolated | |||||||||
| Standards | IEC62619, IEC63056:2000, IEC61000, IEC62477-1, UN38.3 | |||||||||
| AC INPUT & OUTPUT (GRID-TIED) (Inverter) | ||||||||||
| Rated output power (kW) | 49,9 | 49,9 | 50 | 60 | 61 | |||||
| Rated output current (A) | 72,3 | 72,0 | 72,5 | 87,0 | 88,4 | |||||
| Max. apparent output power (kVA) | 49,9 | 49,9 | 55 | 66 | 66 | |||||
| Max. continuous output current (A) | 83,2 | 76,0 | 83,3 | 100,0 | 100,0 | |||||
| BATTERY (Inverter) | ||||||||||
| Battery type | Lithium | |||||||||
| Battery voltage range (V) | 180 – 820 | |||||||||
| Max. charge/discharge current (A) | 160 A (80 A × 2) | |||||||||
| EPS OUTPUT (OFF-GRID) (Inverter) | ||||||||||
| Rated EPS output voltage, frequency (V, Hz) | 230 / 400 V, 220 / 380 V, 50 Hz / 60 Hz | |||||||||
| Rated EPS output power (kVA) | 49,9 | 49,9 | 50,0 | 60,0 | 61,0 | |||||
| Peak EPS output power (kVA, s) | 75 kVA, 10s | 75 kVA, 10s | 55 kVA, Continuous | 66 kVA, Continuous | 66 kVA, Continuous | |||||
| PERFORMANCE (Inverter) | ||||||||||
| Max. efficiency (%) | 98.0% | |||||||||
| European efficiency (%) | 97.2% | |||||||||
| GENERAL (Inverter) | ||||||||||
| Net weight (kg) | < 100 | < 105 | < 100 | < 105 | < 105 | |||||
| Cooling concept | Intelligent air cooling | |||||||||
| Communication interfaces | RS485, CAN, pulse control, DI, DO | |||||||||
| Topology | Non-isolated | |||||||||
| Certificates and approvals | CE, VDE4105, G99, AS4777, EN50549, CEI 0-21, IEC61727, PEA/MEA, NRS-097-2-1, RD1699, TOR | |||||||||
| PROTECTIONS (Inverter) | ||||||||||
| Overvoltage/undervoltage protection | Yes | |||||||||
| DC isolation protection | Yes | |||||||||
| DC reverse polarity protection | Yes | |||||||||
| Grid monitoring | Yes | |||||||||
| DC injection monitoring | Yes | |||||||||
| Backfeed current monitoring | Yes | |||||||||
| Residual current detection | Yes | |||||||||
| Overtemperature protection | Yes | |||||||||
| Active anti-islanding method | Frequency shift | |||||||||
| Surge protection (DC / AC) | DC: Type II, AC: Type II | |||||||||
| Arc-fault circuit interrupter (AFCI) | Yes | |||||||||
| AC auxiliary power supply (APS) | Built-in | |||||||||
| HYBRID ESS CABINET SET (TB-HR140) | ||||||||||
| Battery type | LFP 280Ah | |||||||||
| Battery capacity (kWh) | 14.3 | |||||||||
| Battery configuration | 1P16S | |||||||||
| Battery rated voltage (V) | 51.2 | |||||||||
| Battery voltage range (V) | 40 – 58.4 | |||||||||
| Weight (kg) | 115 | |||||||||
| Charge/discharge rate | ≤ 0.5 C | |||||||||
| Dimensions (W × H × D) (mm) | 461 x 228 × 778 | |||||||||
| Operating temperature range (°C) | -20 – 53°C | |||||||||
| Relative humidity (%) | 0 – 95% RH (non-condensing) | |||||||||
| Max. operating altitude (m) | 3000 | |||||||||
| Ingress protection (IP) | IP20 | |||||||||
| Communication with PCS | CAN | |||||||||
Notes:
- ① The maximum input voltage is the upper limit of DC voltage. Any DC input voltage higher than this may damage the inverter.
- ② An input voltage exceeding the MPPT voltage range may trigger inverter protection.
- ③ The Isc current for a single PV input string is 35 A.
