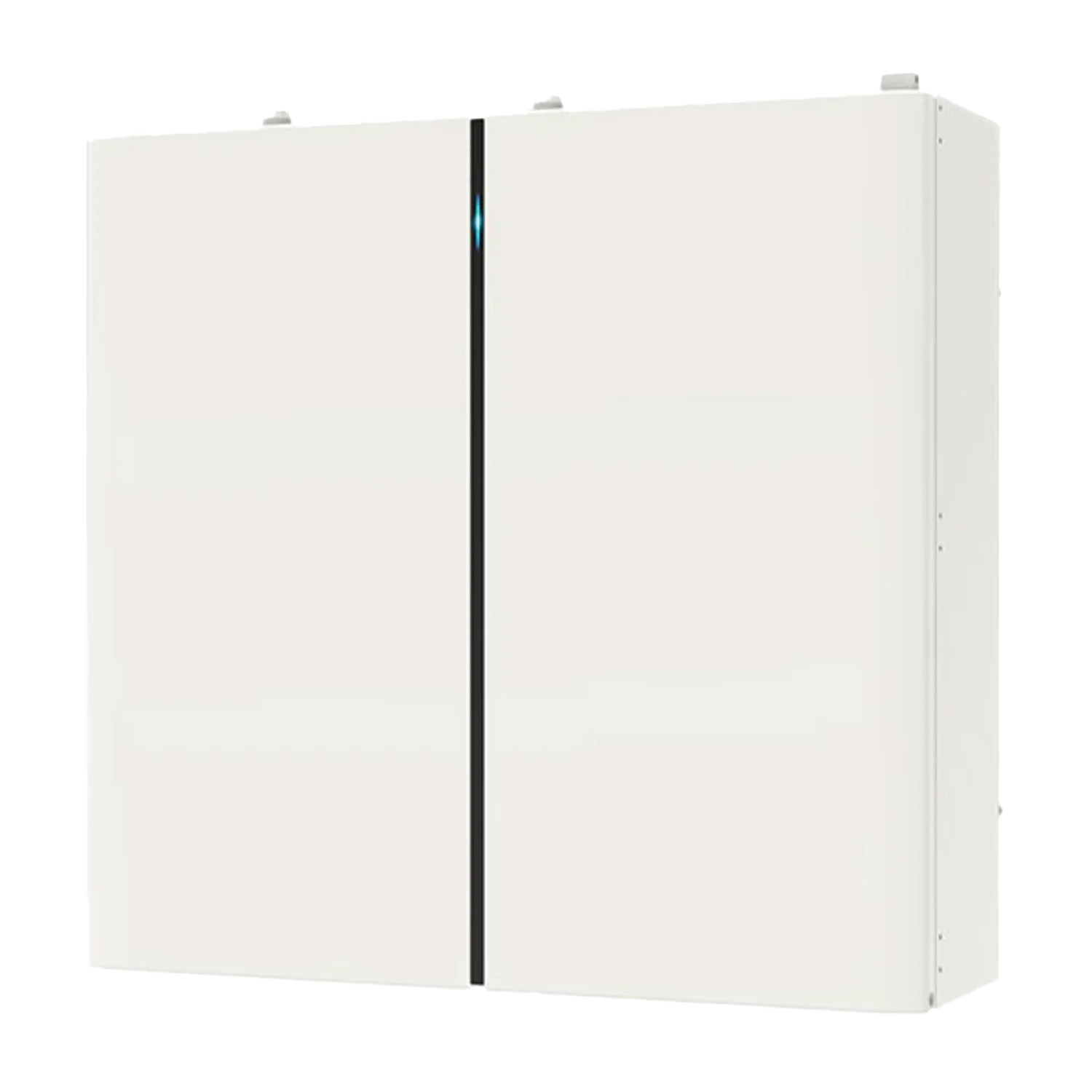

Battery module – SOLAX – HV10230 – V2 – 3.1 kWh – HV
SKU: F20S3
EAN: 2010000031315
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| Battery cell type | |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Required number of modules | |
| Depth of Discharge | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 37,8 kg |
| CN | 85076000 |
Price
961,82 €
Gross
Gross
Datasheet Solax T-BAT H 3.0 - T-BAT H 12.0
Solax-T-BAT-H-3.0-T-BAT-H-12.0-Datasheet-1.pdf
Product details
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| Battery cell type | |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Required number of modules | |
| Depth of Discharge | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 37,8 kg |
| CN | 85076000 |
High-voltage battery system SolaX T-BAT H 3.0 V2
The intelligent, modular SolaX T-BAT H 3.0 V2 battery system is an advanced energy storage solution based on LiFePO4 technology, offering exceptional reliability. Designed for flexibility and performance, it enables system scaling by connecting modules and battery towers, making it ideal for a wide range of applications, from residential to commercial.
Key features of the SolaX T-BAT H 3.0 V2:
- Unique battery heating technology for low-temperature operation, ensuring performance even in harsh conditions.
- Guaranteed reliability thanks to LiFePO4 cells, high-performance processors, and safety certifications (CE, UN38.3).
- High performance with a life cycle count of over 6,000 at 90% depth of discharge (DOD) and an IP65 protection rating.
- Flexible customization thanks to a modular design, stackability, and compatibility with the BMS-Parallel Box-II G2 module, allowing connection of up to two battery towers.
- Remote diagnostics, updates, and maintenance for easier system management.
- Wide operating voltage range from 90 V to 464 V depending on configuration, with usable capacity from 2.8 kWh to 11.0 kWh per module.
Who is this a good choice for?
The SolaX T-BAT H 3.0 V2 system is an ideal choice for homeowners and businesses seeking a reliable, efficient, and scalable energy storage solution. With its resistance to low temperatures (down to -30°C), long cycle life, and remote management capabilities, it performs well in residential and commercial installations, providing energy security and optimal use of renewable energy sources.
Datasheet Solax T-BAT H 3.0 - T-BAT H 12.0
Solax-T-BAT-H-3.0-T-BAT-H-12.0-Datasheet-1.pdf
| Basic specifications | T-BAT H 3.0 V2 | T-BAT H 6.0 V2 | T-BAT H 9.0 V2 | T-BAT H 12.0 V2 |
|---|---|---|---|---|
| Nominal voltage (V) | 102.4 V | 204.8 V | 307.2 V | 409.6 V |
| Operating voltage range (V) | 90~116 V | 180~232 V | 270~348 V | 360~464 V |
| Total energy (kWh) | 3.1 kWh | 6.1 kWh | 9.2 kWh | 12.3 kWh |
| Usable energy (kWh) | 2.8 kWh | 5.5 kWh | 8.3 kWh | 11.0 kWh |
| Rated capacity (Ah) | 30 Ah | 30 A | 30 A | 30 A |
| Recommended charge/discharge current (A) | 25 A | 30 A | 30 A | 30 A |
| Maximum charge/discharge current (A)② | 30 A | 30 A | 30 A | 30 A |
| Battery charge/discharge cycle efficiency (%) | 95% | 95% | 95% | 95% |
| Minimum number of cycles [90% DOD] | 6000 cycles | 6000 cycles | 6000 cycles | 6000 cycles |
| Expected lifespan / warranty | 10 years | 10 years | 10 years | 10 years |
| Permissible charge/discharge temperature range (°C) | -30 ~ 50°C | -30 ~ 50°C | -30 ~ 50°C | -30 ~ 50°C |
| Storage temperature (°C) | -20 ~ 30°C (12 months) / 30 ~ 50°C (6 months) | -20 ~ 30°C (12 months) / 30 ~ 50°C (6 months) | -20 ~ 30°C (12 months) / 30 ~ 50°C (6 months) | -20 ~ 30°C (12 months) / 30 ~ 50°C (6 months) |
| Relative humidity (%) | 4~100% RH (condensation) | 4~100% RH (condensation) | 4~100% RH (condensation) | 4~100% RH (condensation) |
| Altitude (m) | < 3000 m | < 3000 m | < 3000 m | < 3000 m |
| Protection rating | IP65 | IP65 | IP65 | IP65 |
| Battery to inverter connection | RS485 / CAN2.0 | RS485 / CAN2.0 | RS485 / CAN2.0 | RS485 / CAN2.0 |
| Battery to battery / BMS connection | CAN2.0 | CAN2.0 | CAN2.0 | CAN2.0 |
| State-of-charge indicator | 4 LED (25%, 50%, 75%, 100%) | 4 LED (25%, 50%, 75%, 100%) | 4 LED (25%, 50%, 75%, 100%) | 4 LED (25%, 50%, 75%, 100%) |
| Operating mode LED indicator | 1 LED | 1 LED | 1 LED | 1 LED |
| System switch (on/off) | Button x 1 + Switch x 1 | Button x 1 + Switch x 1 | Button x 1 + Switch x 1 | Button x 1 + Switch x 1 |
| Safety certifications | CE, IEC62619, IEC62040, UKCA, VDE2510, ROHS | CE, IEC62619, IEC62040, UKCA, VDE2510, ROHS | CE, IEC62619, IEC62040, UKCA, VDE2510, ROHS | CE, IEC62619, IEC62040, UKCA, VDE2510, ROHS |
| UN number | UN3480 | UN3480 | UN3480 | UN3480 |
| Dangerous goods classification | Class 9 | Class 9 | Class 9 | Class 9 |
| UN transport test requirements | UN 38.3 | UN 38.3 | UN 38.3 | UN 38.3 |
| Dimensions (W x H x D) (mm) | 482.5 ×173.5 x 153 mm | 482.5 ×471.5 x 153 mm | 482.5 ×471.5 x 153 mm | 482.5 ×471.5 x 153 mm |
| Net weight (kg) | 7.5 kg | 34.5 kg | 69 kg | 103.5 kg |
| Inverter compatibility | ||||
| Inverter | X1- Hybrid – G4, X3 – Hybrid-G4 | X1- Hybrid – G4, X3 – Hybrid-G4, X3 – HYB – G4 Pro, X3- Ultra | X1- Hybrid – G4, X3 – Hybrid-G4, X3 – HYB – G4 Pro, X3- Ultra | X1- Hybrid – G4, X3 – Hybrid-G4, X3 – HYB – G4 Pro, X3- Ultra |
| Inverter rated power (kW) | 3 kW, 3.68 kW, 5 kW, 6 kW, 8 kW, 10 kW, 12 kW, 15 kW | 3 kW, 3.68 kW, 5 kW, 6 kW, 8 kW, 10 kW, 12 kW, 15 kW | 4 kW, 5 kW, 6 kW, 8 kW, 10 kW, 12 kW, 15 kW, 20 kW, 25kW, 30kW | 4 kW, 5 kW, 6 kW, 8 kW, 10 kW, 12 kW, 15 kW, 20 kW, 25kW, 30kW |
| Battery storage nominal and maximum power (kW) | 2.56 kW | 3 kW, 3.68 kW, 5 kW, 5.12 kW | 3 kW, 3.68 kW, 5 kW, 6 kW, 7.68 kW | 3 kW, 3.68 kW, 5 kW, 6 kW, 8 kW, 10 kW, 10.24 kW |
Note: The * symbol indicates configuration with 2x BMS MC0600 for the X3-HYB-G4 Pro and X3-Ultra inverters, or Parallel Box II G2 for the X1 – Hybrid – G4 and X3 – Hybrid-G4 inverters.
