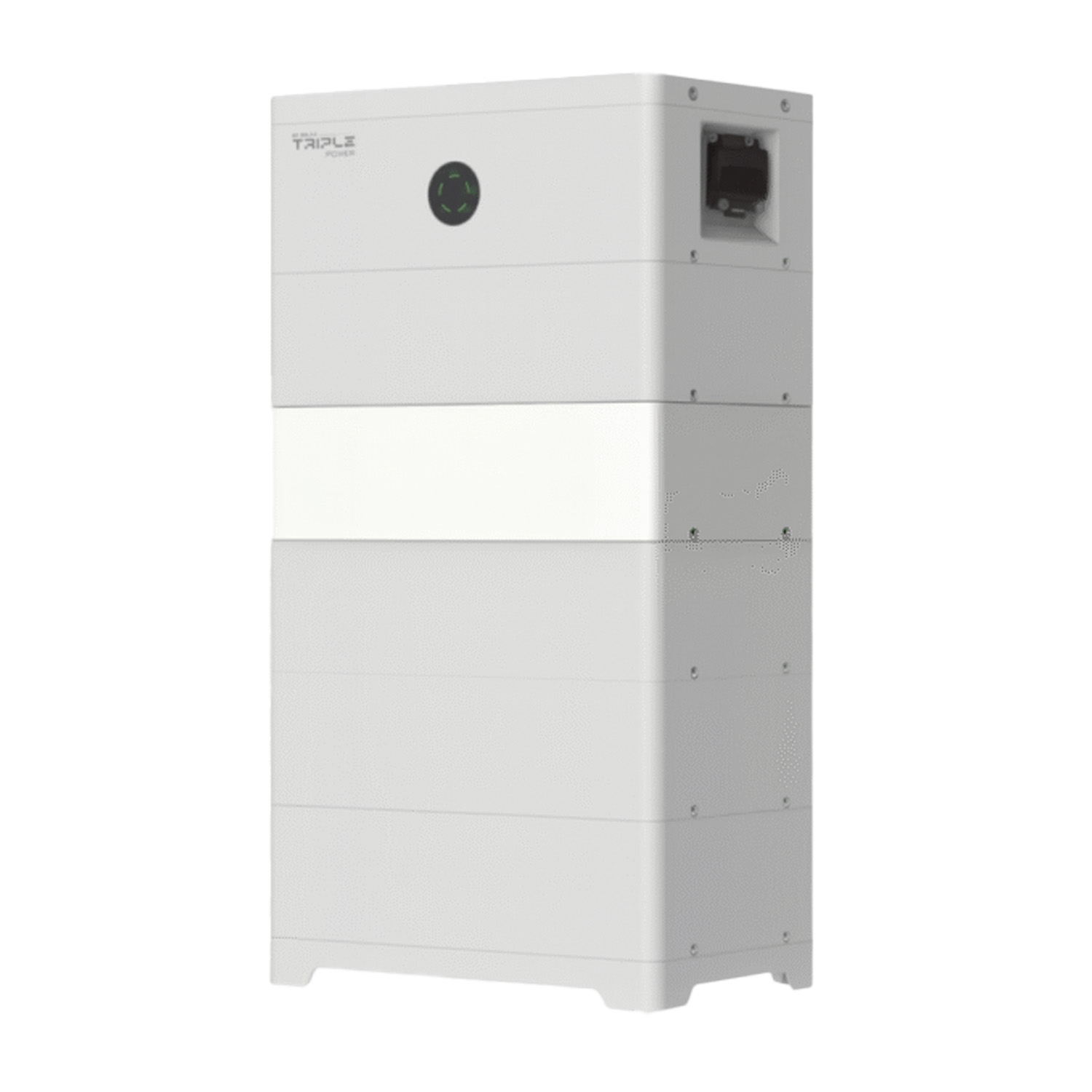

SOLAX battery TB-HS51
SKU: F20S33
EAN: 2010000034224
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| Battery cell type | |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Depth of Discharge | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 50,6 kg |
| CN | 85076000 |
Product details
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| Battery cell type | |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Depth of Discharge | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 50,6 kg |
| CN | 85076000 |
TSYS-HS51 High-Voltage Battery System
TSYS-HS51 is an advanced high-voltage battery system designed for efficient energy storage. Using LiFePO4 cells and intelligent management, it delivers a reliable and flexible solution for a wide range of energy needs. Its modular design enables easy expansion and ensures long-lasting performance.
Key features of the TSYS-HS51:
- Wide capacity range: from 10.2 kWh up to an impressive 66.5 kWh, with flexible expansion via parallel connection.
- Long-lasting performance: cycle life exceeding 6,000 cycles at 90% DOD, ensuring years of reliable operation.
- Intelligent management: remote fault diagnosis, software updates, and advanced maintenance for optimal, hassle-free operation.
- Exceptional resilience: IP66 protection rating and a unique battery heating technology allow operation in a wide temperature range from -30°C to 53°C.
- Easy and flexible installation: compact, modular, stackable design compatible with inverters such as the TCBox-70.
- High safety: based on stable LiFePO4 cells and compliant with strict safety standards such as IEC62619 and VDE 2510.
Who is this a good choice for?
The TSYS-HS51 system is an excellent choice for homeowners and small to medium-sized businesses seeking a scalable, dependable energy storage solution. It is ideal for photovoltaic systems, enabling efficient use of solar energy, greater energy independence, and remote monitoring and management even in challenging environmental conditions.
Datasheet Solax TSYS-HS51
Solax-TSYS-HS51-Datasheet.pdf
| Parameter | T-HS10.2 | T-HS15.3 | T-HS20.4 | T-HS25.6 | T-HS30.7 | T-HS35.8 | T-HS40.9 | T-HS46.0 | T-HS51.2 | T-HS56.3 | T-HS61.4 | T-HS66.5 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SYSTEM SPECIFICATIONS | ||||||||||||
| Number of modules | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 |
| Nominal capacity (kWh) | 10.2 | 15.3 | 20.4 | 25.6 | 30.7 | 35.8 | 40.9 | 46.0 | 51.2 | 56.3 | 61.4 | 66.5 |
| Usable energy (90% DoD) (kWh) | 9.1 | 13.7 | 18.3 | 23.0 | 27.6 | 32.2 | 36.8 | 41.4 | 46.0 | 50.6 | 55.2 | 59.8 |
| Nominal voltage (V) | 102.4 | 153.6 | 204.8 | 256.0 | 307.2 | 358.4 | 409.6 | 460.8 | 512.0 | 563.2 | 614.4 | 665.6 |
| Operating voltage range (V) | 85-116 | 128-174 | 170-232 | 212-289 | 255-347 | 297-405 | 340-463 | 382-520 | 424-578 | 467-636 | 509-694 | 552-750 |
| Rated operating current (A) | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Max. operating current (A) | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
| Rated power (kW) | 6.1 | 9.2 | 12.3 | 15.4 | 18.4 | 21.5 | 24.6 | 27.6 | 30.7 | 33.8 | 36.9 | 39.9 |
| Max. power (kW) | 7.2 | 10.8 | 14.3 | 17.9 | 21.5 | 25.1 | 28.7 | 32.3 | 35.8 | 39.4 | 43.0 | 46.6 |
| Depth of discharge (%) | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 |
| Communication interfaces | CAN + RS485 | CAN + RS485 | CAN + RS485 | CAN + RS485 | CAN + RS485 | CAN + RS485 | CAN + RS485 | CAN + RS485 | CAN + RS485 | CAN + RS485 | CAN + RS485 | CAN + RS485 |
| Dimensions (W × H × D) (mm) | 600 × 621 × 376 | 600 × 789 × 376 | 600 × 957 × 376 | 600 × 1125 × 376 | 600 × 1293 × 376 | 600 × 1461 × 376 | 600 × 1629 × 376 | 600 × 1797 × 376 | 600 × 1965 × 376 | 600 × 2133 × 376 | 600 × 2301 × 376 | 600 × 2469 × 376 |
| BATTERY MODULE SPECIFICATIONS | ||||||||||||
| Module model | TB-HS51 | TB-HS51 | TB-HS51 | TB-HS51 | TB-HS51 | TB-HS51 | TB-HS51 | TB-HS51 | TB-HS51 | TB-HS51 | TB-HS51 | TB-HS51 |
| Cell type | LiFePO4 (LFP) | LiFePO4 (LFP) | LiFePO4 (LFP) | LiFePO4 (LFP) | LiFePO4 (LFP) | LiFePO4 (LFP) | LiFePO4 (LFP) | LiFePO4 (LFP) | LiFePO4 (LFP) | LiFePO4 (LFP) | LiFePO4 (LFP) | LiFePO4 (LFP) |
| Module capacity (kWh) | 5.1 | 5.1 | 5.1 | 5.1 | 5.1 | 5.1 | 5.1 | 5.1 | 5.1 | 5.1 | 5.1 | 5.1 |
| Module dimensions (W × H × D) (mm) | 600 × 168 × 376 | 600 × 168 × 376 | 600 × 168 × 376 | 600 × 168 × 376 | 600 × 168 × 376 | 600 × 168 × 376 | 600 × 168 × 376 | 600 × 168 × 376 | 600 × 168 × 376 | 600 × 168 × 376 | 600 × 168 × 376 | 600 × 168 × 376 |
| Cycle life (90% DoD) (cycles) | >6000 | >6000 | >6000 | >6000 | >6000 | >6000 | >6000 | >6000 | >6000 | >6000 | >6000 | >6000 |
| Installation type | Horizontal pack for stacking | Horizontal pack for stacking | Horizontal pack for stacking | Horizontal pack for stacking | Horizontal pack for stacking | Horizontal pack for stacking | Horizontal pack for stacking | Horizontal pack for stacking | Horizontal pack for stacking | Horizontal pack for stacking | Horizontal pack for stacking | Horizontal pack for stacking |
| SERVICE BOX SPECIFICATIONS | ||||||||||||
| Dimensions (W × H × D) (mm) | 600 × 225 × 376 | 600 × 225 × 376 | 600 × 225 × 376 | 600 × 225 × 376 | 600 × 225 × 376 | 600 × 225 × 376 | 600 × 225 × 376 | 600 × 225 × 376 | 600 × 225 × 376 | 600 × 225 × 376 | 600 × 225 × 376 | 600 × 225 × 376 |
| Weight (kg) | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| GENERAL SPECIFICATIONS | ||||||||||||
| Installation | Floor-standing | Floor-standing | Floor-standing | Floor-standing | Floor-standing | Floor-standing | Floor-standing | Floor-standing | Floor-standing | Floor-standing | Floor-standing | Floor-standing |
| Charging temperature range (without heating) (°C) | -30-53 | -30-53 | -30-53 | -30-53 | -30-53 | -30-53 | -30-53 | -30-53 | -30-53 | -30-53 | -30-53 | -30-53 |
| Discharging temperature range (without heating) (°C) | -20-53 | -20-53 | -20-53 | -20-53 | -20-53 | -20-53 | -20-53 | -20-53 | -20-53 | -20-53 | -20-53 | -20-53 |
| Operating temperature range (with heating) (°C) | -30-53 | -30-53 | -30-53 | -30-53 | -30-53 | -30-53 | -30-53 | -30-53 | -30-53 | -30-53 | -30-53 | -30-53 |
| Relative humidity (% RH) | 4-100 (condensing) | 4-100 (condensing) | 4-100 (condensing) | 4-100 (condensing) | 4-100 (condensing) | 4-100 (condensing) | 4-100 (condensing) | 4-100 (condensing) | 4-100 (condensing) | 4-100 (condensing) | 4-100 (condensing) | 4-100 (condensing) |
| Max. operating altitude (m) | <3000 | <3000 | <3000 | <3000 | <3000 | <3000 | <3000 | <3000 | <3000 | <3000 | <3000 | |
| Environment | Outdoor / indoor | Outdoor / indoor | Outdoor / indoor | Outdoor / indoor | Outdoor / indoor | Outdoor / indoor | Outdoor / indoor | Outdoor / indoor | Outdoor / indoor | Outdoor / indoor | Outdoor / indoor | Outdoor / indoor |
| Protection rating | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 |
| STANDARDS & CERTIFICATION | ||||||||||||
| Transport test requirements | IEC62619, IEC60730, IEC62040, EN62477, UKCA, VDE 2510 | IEC62619, IEC60730, IEC62040, EN62477, UKCA, VDE 2510 | IEC62619, IEC60730, IEC62040, EN62477, UKCA, VDE 2510 | IEC62619, IEC60730, IEC62040, EN62477, UKCA, VDE 2510 | IEC62619, IEC60730, IEC62040, EN62477, UKCA, VDE 2510 | IEC62619, IEC60730, IEC62040, EN62477, UKCA, VDE 2510 | IEC62619, IEC60730, IEC62040, EN62477, UKCA, VDE 2510 | IEC62619, IEC60730, IEC62040, EN62477, UKCA, VDE 2510 | IEC62619, IEC60730, IEC62040, EN62477, UKCA, VDE 2510 | IEC62619, IEC60730, IEC62040, EN62477, UKCA, VDE 2510 | IEC62619, IEC60730, IEC62040, EN62477, UKCA, VDE 2510 | IEC62619, IEC60730, IEC62040, EN62477, UKCA, VDE 2510 |
System dimensions for models T-HS46.0 to T-HS66.5 were calculated based on a consistent per-module height increase due to inconsistencies in the original source document. Some values, such as the rated and maximum operating current, as well as data for individual modules and the service box, were standardized across all variants or inferred from available information and general specifications because of ambiguities in the source document.
