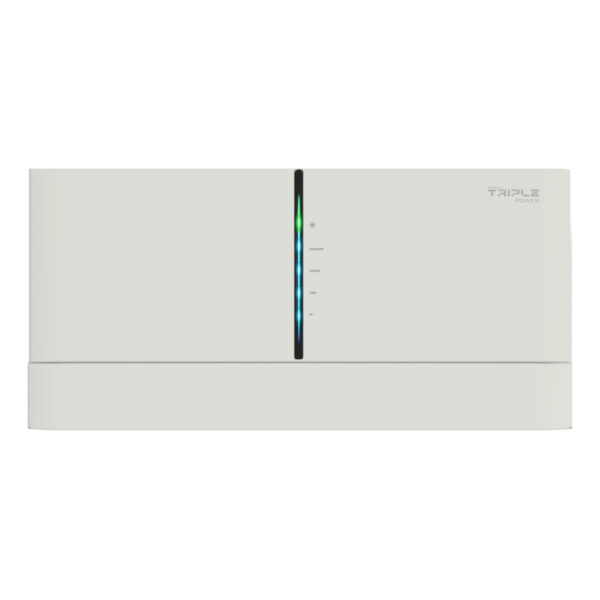

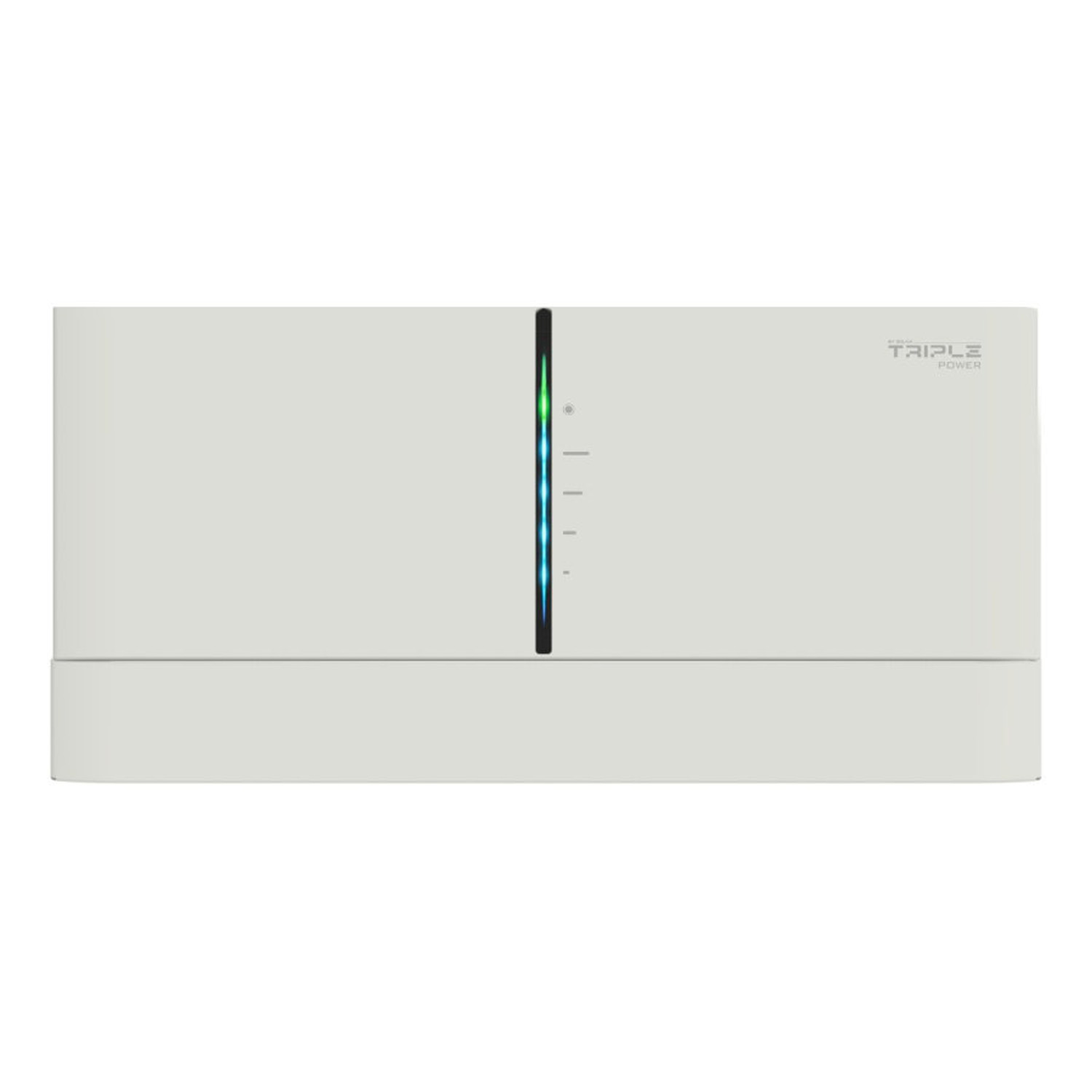

Control module – SOLAX – BMS – MC0600
SKU: F20S2
EAN: 2010000031308
| Manufacturer | |
|---|---|
| CAN 2.0 | |
| RS485 | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 13,02 kg |
| CN | 85371010 |
Price
477,78 €
Gross
Gross
Datasheet Solax T-BAT H 3.0 - T-BAT H 12.0
Solax-T-BAT-H-3.0-T-BAT-H-12.0-Datasheet-1.pdf
Product details
| Manufacturer | |
|---|---|
| CAN 2.0 | |
| RS485 | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 13,02 kg |
| CN | 85371010 |
High-voltage SolaX T-BAT H 3.0 V2 battery system
The intelligent, modular SolaX T-BAT H 3.0 V2 battery system is an advanced energy storage solution based on LiFePO4 technology that delivers exceptional reliability. Designed for flexibility and efficiency, it can be scaled by connecting modules and battery towers, making it suitable for a wide range of applications from residential to commercial.
Key features of the SolaX T-BAT H 3.0 V2:
- Unique battery heating technology for low-temperature operation, ensuring functionality even in harsh conditions.
- Reliable performance thanks to LiFePO4 cells, high-performance processors, and safety certifications (CE, UN38.3).
- High durability with a cycle life of over 6000 cycles at 90% depth of discharge (DoD) and an IP65 protection rating.
- Flexible configuration with a modular, stackable design and compatibility with the BMS-Parallel Box-II G2 module, allowing connection of up to two battery towers.
- Remote diagnostics, updates, and maintenance for simplified system management.
- Wide operating voltage range from 90 V to 464 V depending on configuration, with usable capacity from 2.8 kWh to 11.0 kWh per module.
Who is this a good choice for?
The SolaX T-BAT H 3.0 V2 is an excellent option for homeowners and businesses seeking a reliable, efficient, and scalable energy storage system. With resistance to low temperatures (down to -30°C), a long cycle life, and remote management capabilities, it performs well in both residential and commercial installations, providing energy security and optimal use of renewable energy.
Datasheet Solax T-BAT H 3.0 - T-BAT H 12.0
Solax-T-BAT-H-3.0-T-BAT-H-12.0-Datasheet-1.pdf
| Basic specifications | T-BAT H 3.0 V2 | T-BAT H 6.0 V2 | T-BAT H 9.0 V2 | T-BAT H 12.0 V2 |
|---|---|---|---|---|
| Nominal voltage (V) | 102.4 V | 204.8 V | 307.2 V | 409.6 V |
| Operating voltage range (V) | 90~116 V | 180~232 V | 270~348 V | 360~464 V |
| Total energy (kWh) | 3.1 kWh | 6.1 kWh | 9.2 kWh | 12.3 kWh |
| Usable energy (kWh) | 2.8 kWh | 5.5 kWh | 8.3 kWh | 11.0 kWh |
| Rated capacity (Ah) | 30 Ah | 30 A | 30 A | 30 A |
| Recommended charge/discharge current (A) | 25 A | 30 A | 30 A | 30 A |
| Maximum charge/discharge current (A)② | 30 A | 30 A | 30 A | 30 A |
| Charge/discharge cycle efficiency (%) | 95% | 95% | 95% | 95% |
| Minimum number of cycles [90% DOD] | 6000 cycles | 6000 cycles | 6000 cycles | 6000 cycles |
| Expected lifetime / warranty | 10 years | 10 years | 10 years | 10 years |
| Permissible charge/discharge temperature range (°C) | -30 ~ 50°C | -30 ~ 50°C | -30 ~ 50°C | -30 ~ 50°C |
| Storage temperature (°C) | -20 ~ 30°C (12 months) / 30 ~ 50°C (6 months) | -20 ~ 30°C (12 months) / 30 ~ 50°C (6 months) | -20 ~ 30°C (12 months) / 30 ~ 50°C (6 months) | -20 ~ 30°C (12 months) / 30 ~ 50°C (6 months) |
| Relative humidity (%) | 4~100% RH (condensation) | 4~100% RH (condensation) | 4~100% RH (condensation) | 4~100% RH (condensation) |
| Altitude (m) | < 3000 m | < 3000 m | < 3000 m | < 3000 m |
| Protection rating | IP65 | IP65 | IP65 | IP65 |
| Battery to inverter connection | RS485 / CAN2.0 | RS485 / CAN2.0 | RS485 / CAN2.0 | RS485 / CAN2.0 |
| Battery-to-battery / BMS connection | CAN2.0 | CAN2.0 | CAN2.0 | CAN2.0 |
| State of charge indicator | 4 LEDs (25%, 50%, 75%, 100%) | 4 LEDs (25%, 50%, 75%, 100%) | 4 LEDs (25%, 50%, 75%, 100%) | 4 LEDs (25%, 50%, 75%, 100%) |
| Operation mode LED indicator | 1 LED | 1 LED | 1 LED | 1 LED |
| System switch (on/off) | Button x 1 + Switch x 1 | Button x 1 + Switch x 1 | Button x 1 + Switch x 1 | Button x 1 + Switch x 1 |
| Safety certifications | CE, IEC62619, IEC62040, UKCA, VDE2510, ROHS | CE, IEC62619, IEC62040, UKCA, VDE2510, ROHS | CE, IEC62619, IEC62040, UKCA, VDE2510, ROHS | CE, IEC62619, IEC62040, UKCA, VDE2510, ROHS |
| UN number | UN3480 | UN3480 | UN3480 | UN3480 |
| Hazardous materials classification | Class 9 | Class 9 | Class 9 | Class 9 |
| UN transportation test requirements | UN 38.3 | UN 38.3 | UN 38.3 | UN 38.3 |
| Dimensions (W x H x D) (mm) | 482.5 ×173.5 x 153 mm | 482.5 ×471.5 x 153 mm | 482.5 ×471.5 x 153 mm | 482.5 ×471.5 x 153 mm |
| Net weight (kg) | 7.5 kg | 34.5 kg | 69 kg | 103.5 kg |
| Inverter compatibility | ||||
| Inverter | X1- Hybrid – G4, X3 – Hybrid-G4 | X1- Hybrid – G4, X3 – Hybrid-G4, X3 – HYB – G4 Pro, X3- Ultra | X1- Hybrid – G4, X3 – Hybrid-G4, X3 – HYB – G4 Pro, X3- Ultra | X1- Hybrid – G4, X3 – Hybrid-G4, X3 – HYB – G4 Pro, X3- Ultra |
| Inverter rated power (kW) | 3 kW, 3.68 kW, 5 kW, 6 kW, 8 kW, 10 kW, 12 kW, 15 kW | 3 kW, 3.68 kW, 5 kW, 6 kW, 8 kW, 10 kW, 12 kW, 15 kW | 4 kW, 5 kW, 6 kW, 8 kW, 10 kW, 12 kW, 15 kW, 20 kW, 25 kW, 30 kW | 4 kW, 5 kW, 6 kW, 8 kW, 10 kW, 12 kW, 15 kW, 20 kW, 25 kW, 30 kW |
| Rated and maximum energy storage power (kW) | 2.56 kW | 3 kW, 3.68 kW, 5 kW, 5.12 kW | 3 kW, 3.68 kW, 5 kW, 6 kW, 7.68 kW | 3 kW, 3.68 kW, 5 kW, 6 kW, 8 kW, 10 kW, 10.24 kW |
Note: The symbol * indicates a configuration with 2x BMS MC0600 for X3-HYB-G4 Pro and X3-Ultra inverters or Parallel Box II G2 for X1 – Hybrid – G4 and X3 – Hybrid-G4 inverters.
