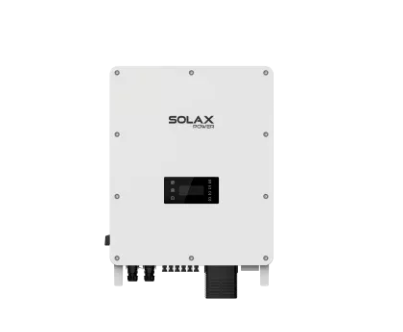

SOLAX X3-AELIO-60K
SKU: F20S14
EAN: 2010000032800
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Off-grid mode | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| CAN | |
| RS485 | |
| SPD Type II | |
| AFCI | |
| MPPT voltage range | |
| Maksymalny prąd wejściowy na MPPT [A] | |
| Weight | 130,1 kg |
| CN | 85044086 |
Price
7 474,48 €
Gross
Gross
Datasheet Solax X3-AELIO-49.9K - X3-AELIO-61K
Solax-X3-AELIO-49.9K-X3-AELIO-61K-Datasheet.pdf
Product details
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Off-grid mode | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| CAN | |
| RS485 | |
| SPD Type II | |
| AFCI | |
| MPPT voltage range | |
| Maksymalny prąd wejściowy na MPPT [A] | |
| Weight | 130,1 kg |
| CN | 85044086 |

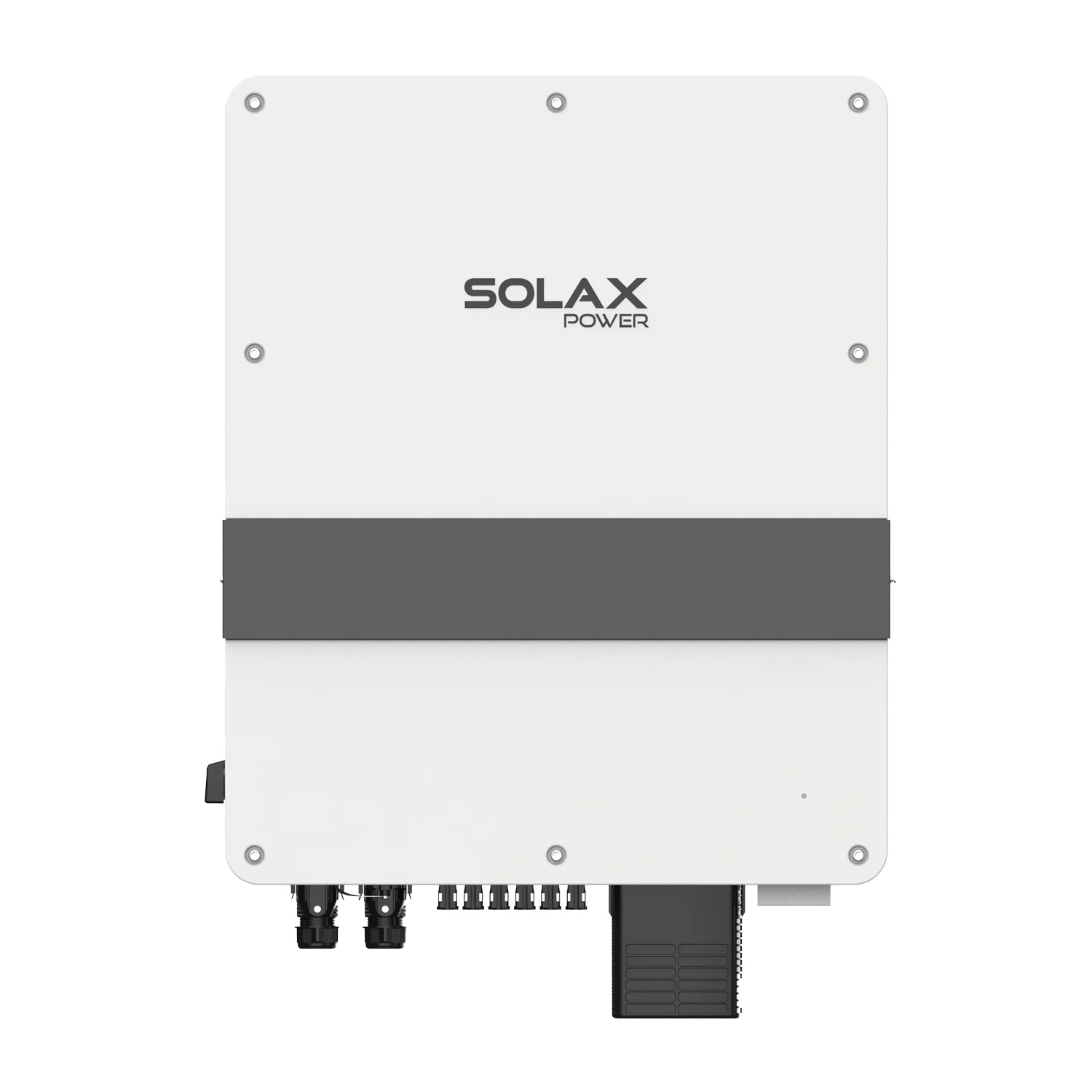

SolaX Power Hybrid Inverters for C&I ESS Cabinets – X3-AELIO Series
The SolaX Power X3-AELIO hybrid inverters (models X3-AELIO-49.9K, X3-AELIO-50K, X3-AELIO-60K, X3-AELIO-61K) are technologically advanced devices designed for commercial and industrial (C&I) applications within energy storage systems (ESS). They offer high levels of protection (IP66, AC/DC Type II SPD), intelligent energy management with AI readiness, and a rugged build for reliable operation. These inverters provide flexible adaptability, including microgrid capability and support for various on-grid and off-grid scenarios.
Key features of the SolaX Power X3-AELIO Hybrid Inverters:
- Intelligent energy management: Use of artificial intelligence (AI ready) to forecast generation and consumption, smart management strategies, VPP (Virtual Power Plant) support via the SolaX cloud (2030.5, OpenADR), and intelligent load management (e.g., heat pump, EV charger).
- High efficiency and PV flexibility: Ability to connect up to 200% of PV input power, maximum input current of 40A per MPPT, support for high-power panels and a wide MPPT voltage range (160–950V) with 5 or 6 MPP trackers (depending on model).
- Robust backup power (EPS): Capability to deliver up to 150% of EPS output power for 10 seconds, transfer time below 10 ms, and support for off-grid operation.
- Advanced safety: IP66 protection rating, integrated AC/DC Type II surge protection (SPD), optional AFCI functionality, and Smart IV Curve scanning for early panel diagnostics.
- Adaptability and scalability: Support for grid-tied or off-grid operation, expandable modular battery capacity (two independent battery ports), and compatibility with wireless meters.
- Wide power range: Models with rated AC output power from 49.9 kW to 61 kW, suitable for a variety of C&I installation needs.
Who is this a good choice for?
The SolaX Power X3-AELIO hybrid inverters are an excellent choice for businesses and commercial or industrial installations seeking an advanced, reliable, and efficient solution for energy management within ESS. Their intelligent features, flexible PV and battery configuration options, comprehensive safety features, and emergency power capabilities make them ideal for maximizing self-consumption, ensuring operational continuity, and optimizing energy costs. These units are future-ready for evolving energy challenges, including integration with virtual power plants.
Datasheet Solax X3-AELIO-49.9K - X3-AELIO-61K
Solax-X3-AELIO-49.9K-X3-AELIO-61K-Datasheet.pdf
| Parameter | X3-AELIO-49.9K | X3-AELIO-50K | X3-AELIO-60K | X3-AELIO-61K |
|---|---|---|---|---|
| DC Side | ||||
| Max PV input power (kW) | 100 | 100 | 120 | 121 |
| Max PV input voltage (V) | 1000 | 1000 | 1000 | 1000 |
| Start-up voltage (V) | 200 | 200 | 200 | 200 |
| Nominal input voltage (V) | 650 | 650 | 650 | 650 |
| MPPT voltage range (V) | 160 – 950 | 160 – 950 | 160 – 950 | 160 – 950 |
| Number of MPP trackers / strings per MPP tracker | 5 (2 per MPPT) | 5 (2 per MPPT) | 6 (2 per MPPT) | 6 (2 per MPPT) |
| Max input current per MPPT (A) | 40 | 40 | 40 | 40 |
| Max input short-circuit current per MPPT (A) | 50 | 50 | 50 | 50 |
| AC Side | ||||
| Rated AC output power (kW) | 49.9 | 50 | 60 | 61 |
| Rated AC output current (A) | 72.3 | 72.5 | 87.0 | 88.4 |
| Max apparent power at AC output (kVA) | 49.9 | 55 | 66 | 66 |
| Max AC output current (A) | 83.2 | 83.3 | 100.0 | 101.7 |
| Rated AC voltage (V) | 3P4W, 400/230, 380/220 | 3P4W, 400/230, 380/220 | 3P4W, 400/230, 380/220 | 3P4W, 400/230, 380/220 |
| Rated AC grid frequency (Hz) | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 |
| Adjustable power factor range | 1 (0.8 leading ~ 0.8 lagging) | 1 (0.8 leading ~ 0.8 lagging) | 1 (0.8 leading ~ 0.8 lagging) | 1 (0.8 leading ~ 0.8 lagging) |
| THDi (rated power) (%) | <3 | <3 | <3 | <3 |
| Battery Side | ||||
| Battery type | Lithium-ion | Lithium-ion | Lithium-ion | Lithium-ion |
| Battery voltage range (V) | 180 – 820 | 180 – 820 | 180 – 820 | 180 – 820 |
| Max charge/discharge current (A) | 160 (80×2) | 160 (80×2) | 160 (80×2) | 160 (80×2) |
| EPS Output (with battery) | ||||
| Peak apparent AC power (kVA) | 49.9 | 55 | 66 | 66 |
| Nominal voltage (V); Frequency (Hz) | 3P4W, 400/230V, 380/220V; 50/60Hz | 3P4W, 400/230V, 380/220V; 50/60Hz | 3P4W, 400/230V, 380/220V; 50/60Hz | 3P4W, 400/230V, 380/220V; 50/60Hz |
| Max continuous output current (A) | 72.0 | 83.6 | 100.3 | 100.3 |
| Switching time (ms) | < 10 | < 10 | < 10 | < 10 |
| General | ||||
| Max efficiency (%) | 98 | 98 | 98 | 98 |
| European weighted efficiency (%) | 97.2 | 97.2 | 97.2 | 97.2 |
| Ingress protection (IP) | IP66 | IP66 | IP66 | IP66 |
| Operating ambient temperature range (°C) | -35 ~ 60 | -35 ~ 60 | -35 ~ 60 | -35 ~ 60 |
| Max operating altitude (m) | < 3000 | < 3000 | < 3000 | < 3000 |
| Relative humidity (%) | 0 ~ 100 | 0 ~ 100 | 0 ~ 100 | 0 ~ 100 |
| Typical noise emission (dB) | < 70 | < 70 | < 70 | < 70 |
| Dimensions (W x H x D) (mm) | 820 × 670× 257 | 820 × 670× 257 | 820 × 670× 257 | 820 × 670× 257 |
| Net weight (kg) | < 100 | < 100 | < 105 | < 105 |
| Cooling concept | Intelligent air cooling | Intelligent air cooling | Intelligent air cooling | Intelligent air cooling |
| Communication interfaces | RS485, CAN(BMS), CAN, USB, DI, DO, DRM | RS485, CAN(BMS), CAN, USB, DI, DO, DRM | RS485, CAN(BMS), CAN, USB, DI, DO, DRM | RS485, CAN(BMS), CAN, USB, DI, DO, DRM |
| Display | LCD (optional) | LCD (optional) | LCD (optional) | LCD (optional) |
| Energy consumption | ||||
| Standby (night) consumption (W) | < 10 | < 10 | < 10 | < 10 |
| Protection | ||||
| Over/under voltage protection | Yes | Yes | Yes | Yes |
| DC isolation protection | Yes | Yes | Yes | Yes |
| DC reverse polarity protection | Yes | Yes | Yes | Yes |
| Grid monitoring | Yes | Yes | Yes | Yes |
| DC injection monitoring | Yes | Yes | Yes | Yes |
| Reverse current monitoring | Yes | Yes | Yes | Yes |
| Residual current detection | Yes | Yes | Yes | Yes |
| Anti-islanding protection | Yes | Yes | Yes | Yes |
| Overheat protection | Yes | Yes | Yes | Yes |
| SPD (DC/AC) | Type II/Type II | Type II/Type II | Type II/Type II | Type II/Type II |
| Residual current device (AFCI) | Optional | Optional | Optional | Optional |
| Standards | ||||
| Safety | EN/IEC 62109-1/-2 | EN/IEC 62109-1/-2 | EN/IEC 62109-1/-2 | EN/IEC 62109-1/-2 |
| EMC | EN 61000-6-1/2/3/4, EN 61000-3-11/12, EN 55011, IEC 62920 | EN 61000-6-1/2/3/4, EN 61000-3-11/12, EN 55011, IEC 62920 | EN 61000-6-1/2/3/4, EN 61000-3-11/12, EN 55011, IEC 62920 | EN 61000-6-1/2/3/4, EN 61000-3-11/12, EN 55011, IEC 62920 |
| Certification | VDE4105, G99, AS4777, EN50549, CEI 0-21, IEC61727, PEA/MEA, NRS-097-2-1, RD1699, TOR | VDE4105, G99, AS4777, EN50549, CEI 0-21, IEC61727, PEA/MEA, NRS-097-2-1, RD1699, TOR | VDE4105, G99, AS4777, EN50549, CEI 0-21, IEC61727, PEA/MEA, NRS-097-2-1, RD1699, TOR | VDE4105, G99, AS4777, EN50549, CEI 0-21, IEC61727, PEA/MEA, NRS-097-2-1, RD1699, TOR |
