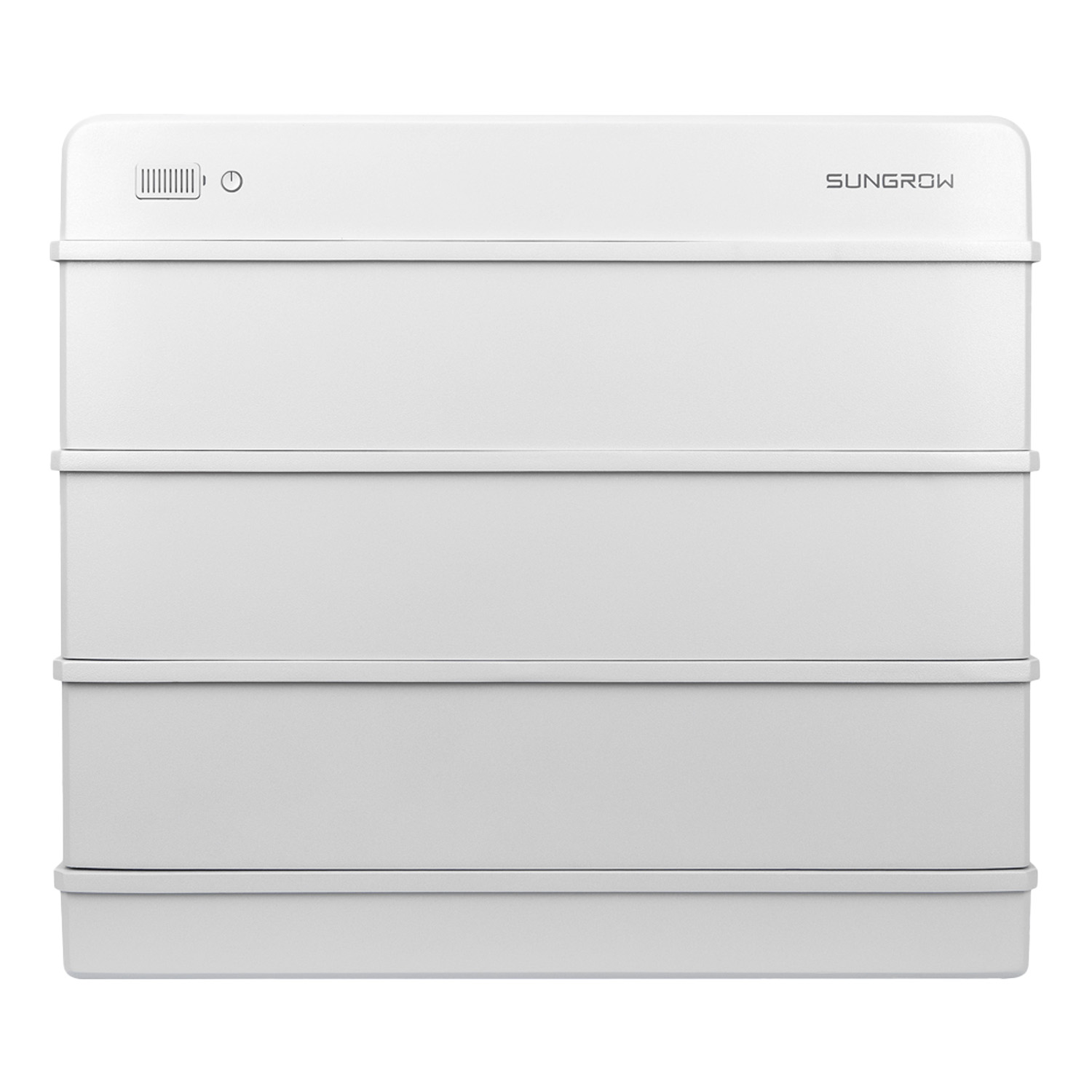

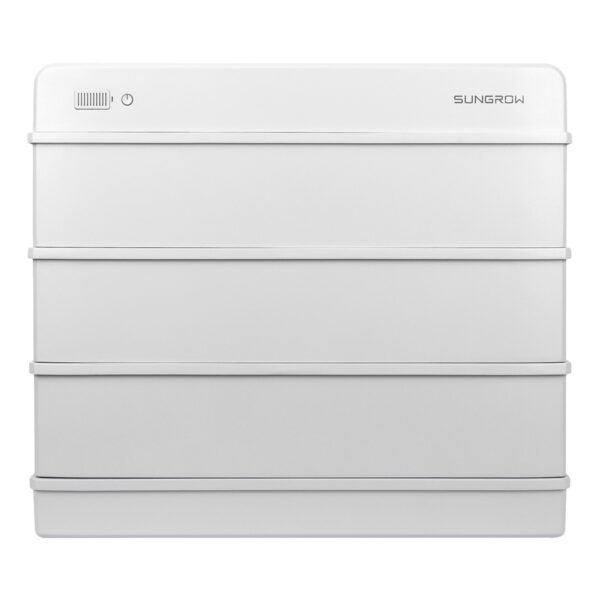

SUNGROW SBR064 V13 Battery System 6.4 kWh + SBR Accessory V114
SKU: F2D061
EAN: 2010000030721
| Manufacturer | |
|---|---|
| Capacity | |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Required number of modules | |
| CAN | Yes |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 94,9 kg |
| CN | 85371010 |
Price
1 710,46 €
Gross
Gross
Datasheet SUNGROW SBR064-256
SUNGROW-SBR064-256-Datasheet.pdf
Warranty SUNGROW SBR064-256
SUNGROW-SBR064-256-Warranty.pdf
Quick installation guide SUNGROW SBR064-256
SUNGROW-SBR064-256-Quick-installation-guide.pdf
Product details
| Manufacturer | |
|---|---|
| Capacity | |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Required number of modules | |
| CAN | Yes |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 94,9 kg |
| CN | 85371010 |
High Voltage LFP Battery Sungrow SBR Series
The high voltage lithium iron phosphate (LFP) battery systems from Sungrow’s SBR series (models SBR064 to SBR256) offer a modern and flexible energy storage solution for both residential and commercial installations. With a modular design, these systems provide a wide range of capacities, high efficiency, and the highest level of safety, while their installation is exceptionally simple thanks to the Plug and Play concept.
Key Features of Sungrow SBR Batteries:
- Modular and Flexible Design: The system consists of 2 to 8 battery modules (each 3.2 kWh), providing a usable capacity range from 6.4 kWh to 25.6 kWh, with the potential for easy future expansion.
- High Efficiency: The ability to charge and discharge up to 30A and utilize up to 100% of stored energy (100% DoD) ensures effective energy management.
- Safe LiFePO4 Technology: The use of stable and safe lithium iron phosphate cells combined with a multi-layer protective design and numerous safety certifications.
- Easy Plug & Play Installation: The compact and lightweight design (can be installed by one person) and the absence of the need for wiring between individual battery modules significantly simplify and speed up the installation process.
- High Protection Level: IP55 rating allows for safe installation both indoors and outdoors.
- Wide Operating Temperature Range: Reliable operation in various climatic conditions (charging 0-50°C, discharging -20-50°C).
Who is This a Good Choice For?
The Sungrow SBR series batteries are an excellent choice for homeowners and small businesses looking for a reliable, safe, and scalable energy storage system to work alongside solar PV installations. Their modularity allows for capacity adjustments to meet current needs and easy expansion in the future, while the simplicity of installation makes them an attractive solution for both new and retrofitted PV systems.
Datasheet SUNGROW SBR064-256
SUNGROW-SBR064-256-Datasheet.pdf
Warranty SUNGROW SBR064-256
SUNGROW-SBR064-256-Warranty.pdf
Quick installation guide SUNGROW SBR064-256
SUNGROW-SBR064-256-Quick-installation-guide.pdf
High-Voltage Battery Specification – Sungrow SBR
| Type designation | SBR064* | SBR096 | SBR128 | SBR160 | SBR192 | SBR224 | SBR256 |
|---|---|---|---|---|---|---|---|
| Technical data | 2 modules | 3 modules | 4 modules | 5 modules | 6 modules | 7 modules | 8 modules |
| System data | |||||||
| Battery type | Prismatic LiFePO4 cell | Prismatic LiFePO4 cell | Prismatic LiFePO4 cell | Prismatic LiFePO4 cell | Prismatic LiFePO4 cell | Prismatic LiFePO4 cell | Prismatic LiFePO4 cell |
| Battery module (kWh, kg) | 3.2 kWh, 33 kg | 3.2 kWh, 33 kg | 3.2 kWh, 33 kg | 3.2 kWh, 33 kg | 3.2 kWh, 33 kg | 3.2 kWh, 33 kg | 3.2 kWh, 33 kg |
| Energy (usable)** (kWh) | 6.4 kWh | 9.6 kWh | 12.8 kWh | 16 kWh | 19.2 kWh | 22.4 kWh | 25.6 kWh |
| Nominal voltage (V) | 128 V | 192 V | 256 V | 320 V | 384 V | 448 V | 512 V |
| Operating voltage (V) | 108 V – 146 V | 150 V – 219 V | 200 V – 292 V | 250 V – 365 V | 300 V – 438 V | 350 V – 511 V | 400 V – 584 V |
| Max. charging/discharging current*** (A) | 30 A | 30 A | 30 A | 30 A | 30 A | 30 A | 30 A |
| Depth of discharge | Max. 100% DOD (configurable) | Max. 100% DOD (configurable) | Max. 100% DOD (configurable) | Max. 100% DOD (configurable) | Max. 100% DOD (configurable) | Max. 100% DOD (configurable) | Max. 100% DOD (configurable) |
| Short-circuit current (A) | 3500 A | 3500 A | 3500 A | 3500 A | 3500 A | 3500 A | 3500 A |
| Display | SOC Indicator, Status Indicator | SOC Indicator, Status Indicator | SOC Indicator, Status Indicator | SOC Indicator, Status Indicator | SOC Indicator, Status Indicator | SOC Indicator, Status Indicator | SOC Indicator, Status Indicator |
| Communication interface | CAN | CAN | CAN | CAN | CAN | CAN | CAN |
| Protection | |||||||
| Overvoltage/undervoltage protection | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Overcurrent protection | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Overtemperature/undertemperature protection | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| DC disconnect switch | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| General data | |||||||
| Dimensions (W x H x D) (mm) | 625*545*330 mm | 625*545*330 mm | 625*675*330 mm | 625*805*330 mm | 625*935*330 mm | 625 x 1065 x 330 mm | 625*1195*330 mm |
| Weight (kg) | 89 kg | 114 kg | 147 kg | 180 kg | 213 kg | 246 kg | 279 kg |
| Installation location | Indoors / Outdoors | Indoors / Outdoors | Indoors / Outdoors | Indoors / Outdoors | Indoors / Outdoors | Indoors / Outdoors | Indoors / Outdoors |
| Installation method | Floor standing | Floor standing | Floor standing | Floor standing | Floor standing | Floor standing | Floor standing |
| Ambient operating temperature range (°C) | Charging: 0 °C – 50 °C
Discharging: -20 °C – 50 °C |
Charging: 0 °C – 50 °C
Discharging: -20 °C – 50 °C |
Charging: 0 °C – 50 °C
Discharging: -20 °C – 50 °C |
Charging: 0 °C – 50 °C
Discharging: -20 °C – 50 °C |
Charging: 0 °C – 50 °C
Discharging: -20 °C – 50 °C |
Charging: 0 °C – 50 °C
Discharging: -20 °C – 50 °C |
Charging: 0 °C – 50 °C
Discharging: -20 °C – 50 °C |
| Protection rating | IP55 | IP55 | IP55 | IP55 | IP55 | IP55 | IP55 |
| Permissible relative humidity range (%) | 0% – 95% non-condensing | 0% – 95% non-condensing | 0% – 95% non-condensing | 0% – 95% non-condensing | 0% – 95% non-condensing | 0% – 95% non-condensing | 0% – 95% non-condensing |
| Max. operating altitude (m) | Max. 4000 m | Max. 4000 m | Max. 4000 m | Max. 4000 m | Max. 4000 m | Max. 4000 m | Max. 4000 m |
| Cooling method | Natural cooling | Natural cooling | Natural cooling | Natural cooling | Natural cooling | Natural cooling | Natural cooling |
| Certifications | CE, CEC, IEC 62619, IEC 62040, UN38.3, VDE 2510-50, IEC 62477, IEC 63056, IEC 61000, UKCA | CE, CEC, IEC 62619, IEC 62040, UN38.3, VDE 2510-50, IEC 62477, IEC 63056, IEC 61000, UKCA | CE, CEC, IEC 62619, IEC 62040, UN38.3, VDE 2510-50, IEC 62477, IEC 63056, IEC 61000, UKCA | CE, CEC, IEC 62619, IEC 62040, UN38.3, VDE 2510-50, IEC 62477, IEC 63056, IEC 61000, UKCA | CE, CEC, IEC 62619, IEC 62040, UN38.3, VDE 2510-50, IEC 62477, IEC 63056, IEC 61000, UKCA | CE, CEC, IEC 62619, IEC 62040, UN38.3, VDE 2510-50, IEC 62477, IEC 63056, IEC 61000, UKCA | CE, CEC, IEC 62619, IEC 62040, UN38.3, VDE 2510-50, IEC 62477, IEC 63056, IEC 61000, UKCA |
