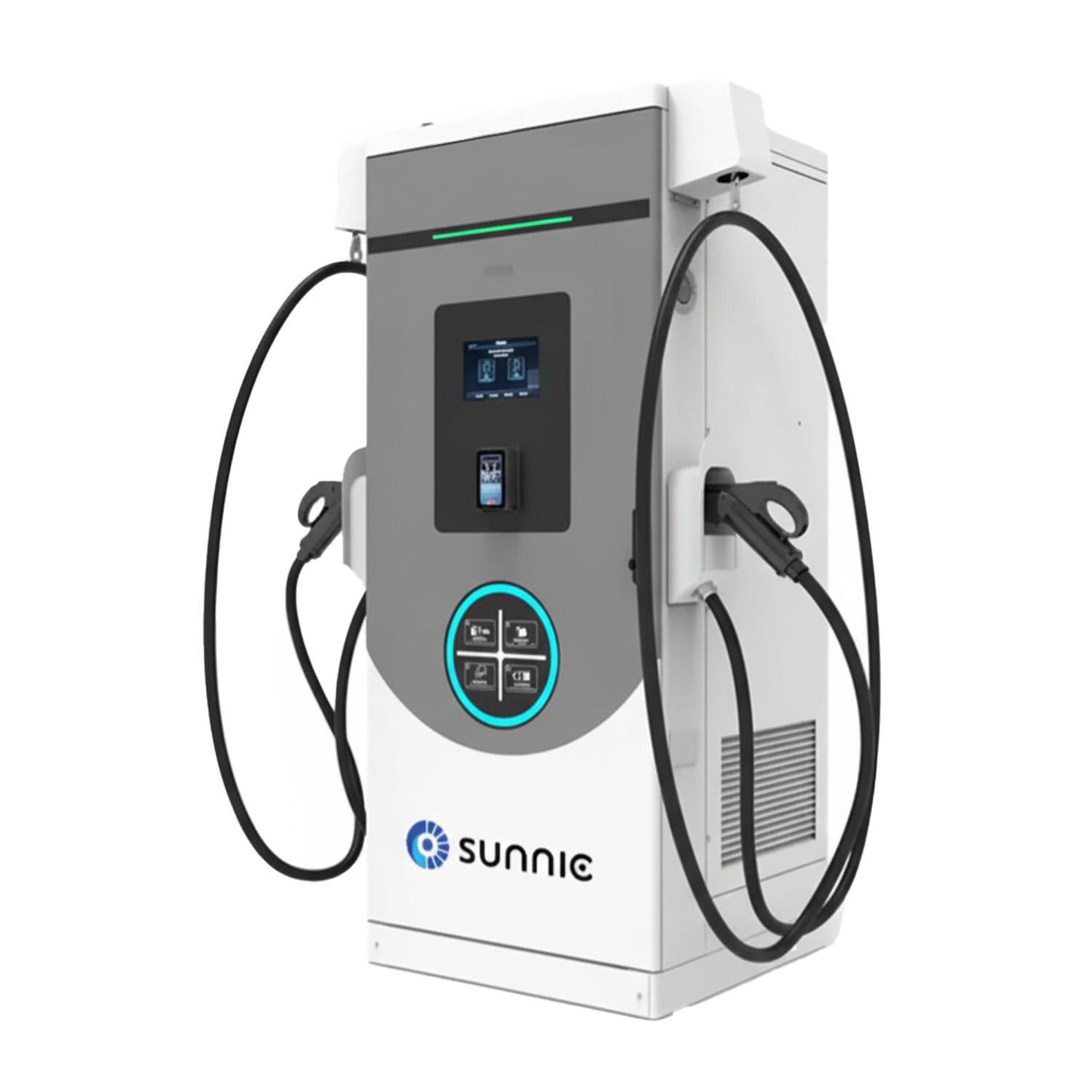

Charging station – SUNNIC – integrated DC fast charger, dual charging ports, 80 kW
SKU: F1306
EAN: 2010000029015
Price
16 824,40 €
Gross
Gross
Certificate of compliance 1 Sunnic Integrated DC fast Charger dual charging ports 80 kW
428a31fe66f623969b601938c07de4f1.pdf
Certificate of compliance 2 Sunnic Integrated DC fast Charger dual charging ports 80 kW
ee802a06a0aef2f8abc1874a0b09fffa.pdf
Certificate of compliance 3 Sunnic Integrated DC fast Charger dual charging ports 80 kW
64c154b4623af89913cb0a895f9be75c.pdf
Certificate of compliance 4 Sunnic Integrated DC fast Charger dual charging ports 80 kW
da057820358211c0a127cfd05a229f90.pdf
Datasheet Sunnic Integrated DC fast Charger dual charging ports 80 kW
datasheet-sunnic-integrated-dc-fast-charger-dual-charging-ports-80-kw.pdf
Product details
SUNNIC 50-80 KW DC FAST CHARGING STATION
The Sunnic DC fast charging station is an advanced solution designed for the European market. It delivers high charging power, intelligent control and excellent heat dissipation, ensuring safety for both users and vehicles. Available in power variants from 50 to 80 kW.
Key features of the SUNNIC 50-80 KW DC FAST CHARGING STATION:
- Charging power available in 50 kW, 60 kW and 80 kW variants.
- HMI provided as a 10.1-inch color touchscreen.
- Communication compatible with PLC standards (DIN 70121: 2014-12 / ISO15118) and OCPP 1.6/2.0 protocol (upgradable).
- Wide DC output voltage range: 200–1000 V.
- High peak efficiency of over 95%.
- Durable enclosure with an IP54 protection rating, suitable for indoor and outdoor use in temperatures from -30°C to +50°C.
Who is this a good choice for?
The station is an ideal solution for public charging points, electric vehicle fleets (taxis, buses, delivery and special-purpose vehicles), housing associations, businesses and shopping complexes. Its versatility, compliance with European standards and high performance make it well suited to a variety of commercial and semi-commercial applications that require fast, reliable electric vehicle charging.
Certificate of compliance 1 Sunnic Integrated DC fast Charger dual charging ports 80 kW
428a31fe66f623969b601938c07de4f1.pdf
Certificate of compliance 2 Sunnic Integrated DC fast Charger dual charging ports 80 kW
ee802a06a0aef2f8abc1874a0b09fffa.pdf
Certificate of compliance 3 Sunnic Integrated DC fast Charger dual charging ports 80 kW
64c154b4623af89913cb0a895f9be75c.pdf
Certificate of compliance 4 Sunnic Integrated DC fast Charger dual charging ports 80 kW
da057820358211c0a127cfd05a229f90.pdf
Datasheet Sunnic Integrated DC fast Charger dual charging ports 80 kW
datasheet-sunnic-integrated-dc-fast-charger-dual-charging-ports-80-kw.pdf
| Parameter | 50kW | 60kW | 80kW |
|---|---|---|---|
| Basic specifications | |||
| Rated power | 50kW | 60kW | 80kW |
| Dimensions (W x D x H) | 800mm x 500mm x 1800mm | 800mm x 500mm x 1800mm | 800mm x 500mm x 1800mm |
| Charging connector | CCS2 + CHAdeMO (optional), length: 5 m | CCS2 + CHAdeMO (optional), length: 5 m | CCS2 + CHAdeMO (optional), length: 5 m |
| User interface (HMI) | 10.1-inch touchscreen | 10.1-inch touchscreen | 10.1-inch touchscreen |
| Energy meter | MID | MID | MID |
| Installation | Ground-mounted | Ground-mounted | Ground-mounted |
| Backend protocol | PLC (DIN 70121: 2014-12 / ISO15118) OCPP 1.6 / OCPP 2.0 (upgradeable) |
PLC (DIN 70121: 2014-12 / ISO15118) OCPP 1.6 / OCPP 2.0 (upgradeable) |
PLC (DIN 70121: 2014-12 / ISO15118) OCPP 1.6 / OCPP 2.0 (upgradeable) |
| Payment method | Optional: RFID card / POS | Optional: RFID card / POS | Optional: RFID card / POS |
| Input characteristics | |||
| Input voltage | 400VAC ±10%, three-phase + N + PE | 400VAC ±10%, three-phase + N + PE | 400VAC ±10%, three-phase + N + PE |
| Frequency | 50Hz | 50Hz | 50Hz |
| Power factor | >0.98 (load 50% to 100%) | >0.98 (load 50% to 100%) | >0.98 (load 50% to 100%) |
| Harmonic distortion (iTHD) | <5% | <5% | <5% |
| Output characteristics | |||
| Output voltage | DC 200 to 1000 V | DC 200 to 1000 V | DC 200 to 1000 V |
| Output current | CCS2 167 A max. CHAdeMO 124 A max. |
CCS2 200 A max. CHAdeMO 125 A max. |
CCS2 200 A max. CHAdeMO 125 A max. |
| Output power | CCS2 50 kW max. CHAdeMO 50 kW max. |
CCS2 60 kW max. CHAdeMO 60 kW max. |
CCS2 80 kW max. CHAdeMO 62.5 kW max. |
| Peak efficiency | >95% | >95% | >95% |
| Charging method | Fast charging | Fast charging | Fast charging |
| Environmental conditions | |||
| Operating temperature | -30°C to +50°C | -30°C to +50°C | -30°C to +50°C |
| Relative humidity | 5%–95% non-condensing | 5%–95% non-condensing | 5%–95% non-condensing |
| Operating altitude | <2000 m | <2000 m | <2000 m |
| Protection rating | IP54 | IP54 | IP54 |
| Application | Indoor/Outdoor | Indoor/Outdoor | Indoor/Outdoor |
| Cooling method | Intelligent forced-air cooling | Intelligent forced-air cooling | Intelligent forced-air cooling |
| Noise level | ≤55dB | ≤55dB | ≤55dB |
| Certifications | |||
| Certifications | CE, CB, UKCA, TR25 | CE, CB, UKCA, TR25 | CE, CB, UKCA, TR25 |
| Weight | |||
| Net weight | ≤250 kg | ≤250 kg | ≤250 kg |
| Gross weight | ≤300 kg | ≤300 kg | ≤300 kg |
