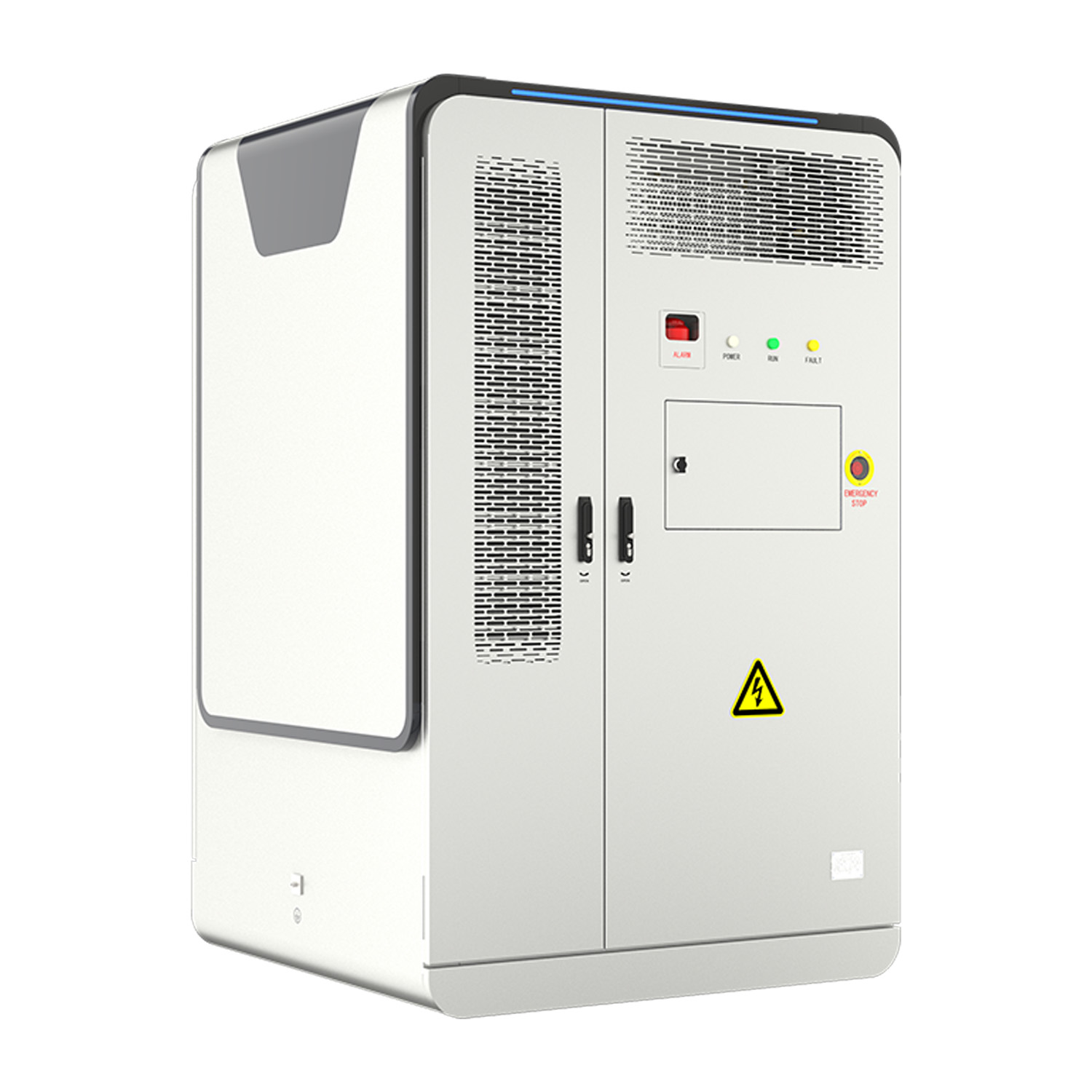

SUNNIC SKBES0232-950 100 kW / EPS 8 ms
SKU: F2000-1
EAN: 2010000032305
| Manufacturer | |
|---|---|
| Net depth | |
| Warranty | |
| Number of charging cycles | |
| Rated power | |
| Capacity | |
| Net width | |
| Net height | |
| CN | 85076000 |
Product details
| Manufacturer | |
|---|---|
| Net depth | |
| Warranty | |
| Number of charging cycles | |
| Rated power | |
| Capacity | |
| Net width | |
| Net height | |
| CN | 85076000 |
Order lead time is 60–90 days
SUNNIC Liquid-Cooled Energy Storage System SKBES0232-950
The SUNNIC SKBES0232-950 liquid-cooled energy storage system is an advanced solution based on long-life CATL batteries. The 232 kWh cabinet allows modular expansion to the MWh level (up to 5 cabinets connected in parallel), meeting the needs of projects of different scales. The system features high integration, efficiency, and flexibility, as well as intelligent management and safety.
Key features of the SUNNIC SKBES0232-950 Energy Storage System:
- Performance and flexibility: Long-life CATL battery (up to 8,000 cycles), system efficiency up to 90.2% (for the 100 kW version), and a modular design that supports parallel connection and system expansion.
- Intelligent and safe management: Proprietary Energy Management System (EMS) with customization and update capabilities, battery health management (lifetime prediction, state-of-health assessment, safety alerts), and a cloud monitoring and service platform.
- High “All-in-One” integration: The integrated cabinet includes the battery, BMS, EMS, PCS (inverter), liquid cooling system, fire protection system, etc., providing compact dimensions and a small footprint.
- Ready for rapid installation: Delivered pre-assembled and plug-and-play ready, which shortens on-site installation time.
- Available power variants: Rated power models of 100 kW (SKBES0232-1000) and 200 kW, with corresponding maximum output powers of 115 kW and 230 kW.
- Advanced cooling: Air cooling for the PCS and liquid cooling for the batteries, ensuring optimal operating conditions and long component life.
Who is this a good choice for?
The SUNNIC SKBES0232-950 energy storage system is an ideal solution for a wide range of commercial and industrial applications, such as industrial parks, commercial buildings, electric vehicle charging stations, utility applications, and virtual power plants (VPP). Its modular architecture, high efficiency, advanced management and safety features, and ability to scale to the MWh level make it an excellent choice for projects that require reliable and efficient large-scale energy storage.
Datasheet SUNNIC SKBES0232-950
SUNNIC-SKBES0232-950-Datasheet.pdf
| Feature | 100kW | 200kW |
|---|---|---|
| General | ||
| Product Model | SKBES0232-1000 | SKBES0232-1000 |
| Width*Depth*Height (mm) | 1450mm*1350mm*2225mm | 1450mm*1350mm*2225mm |
| Installation | Floor installation | Floor installation |
| System Efficiency (%) | 90.2% | 88.1% |
| Cooling Method | PCS air-cooled + battery liquid-cooled | PCS air-cooled + battery liquid-cooled |
| Protection Level (IP) | IP54 | IP54 |
| Input Method | Bottom AC entry | Bottom AC entry |
| DC Battery | ||
| Cell Type | LFP 3.2V/280Ah | LFP 3.2V/280Ah |
| Battery Configuration (kWh) | 1P52S/46.592kWh | 1P52S/46.592kWh |
| System Configuration | 1P260S | 1P260S |
| Voltage Range (VDC) | 728VDC~936VDC | 728VDC~936VDC |
| System Capacity (kWh) | 232kWh | 232kWh |
| Temperature Sensor | Cells + Copper Busbars | Cells + Copper Busbars |
| Charge/Discharge Rate | ≤0.5P | ≤1P |
| AC Parameters (on-grid) | ||
| Rated Power (kW) | 100kW | 200kW |
| Max. Output Power (kW) | 115kW | 230kW |
| Nominal Grid Voltage (VAC) | 400VAC | 400VAC |
| Nominal Grid Frequency (Hz) | 50/60Hz | 50/60Hz |
| Power Factor | -1 (leading) ~ 1 (lagging) | -1 (leading) ~ 1 (lagging) |
| AC Current THDi (%) | <3% (rated output power) | <3% (rated output power) |
| Connection Method | Three-phase four-wire | Three-phase four-wire |
| Overload Capability | 1.1 times (continuous) | 1.1 times (continuous) |
| Environmental Requirements | ||
| Operating Ambient Temperature (°C) | -25 °C~+50 °C | -25 °C~+50 °C |
| Operating Humidity | 0% ~ 95% RH, non-condensing | 0% ~ 95% RH, non-condensing |
| Max. Operating Altitude (m) | 4000m (power derating above 2000m) | 4000m (power derating above 2000m) |
| Expansion Options | 100kW+STS | 100kW+STS |
Product features:
- Efficient and flexible: Long-life CATL battery rated up to 8,000 cycles; system efficiency 90%; modular design supports parallel connection and system expansion.
- Safe and smart: Proprietary energy management system that is customizable and upgradable to meet various needs; battery health management includes life prediction, state-of-health assessment, and safety alerts; cloud-based monitoring and service platform supporting remote management.
- Highly integrated: All-in-one cabinet integrates battery, BMS, EMS, PCS, liquid cooling system, fire protection system, etc.; compact footprint; delivered assembled and ready to plug in and use.
