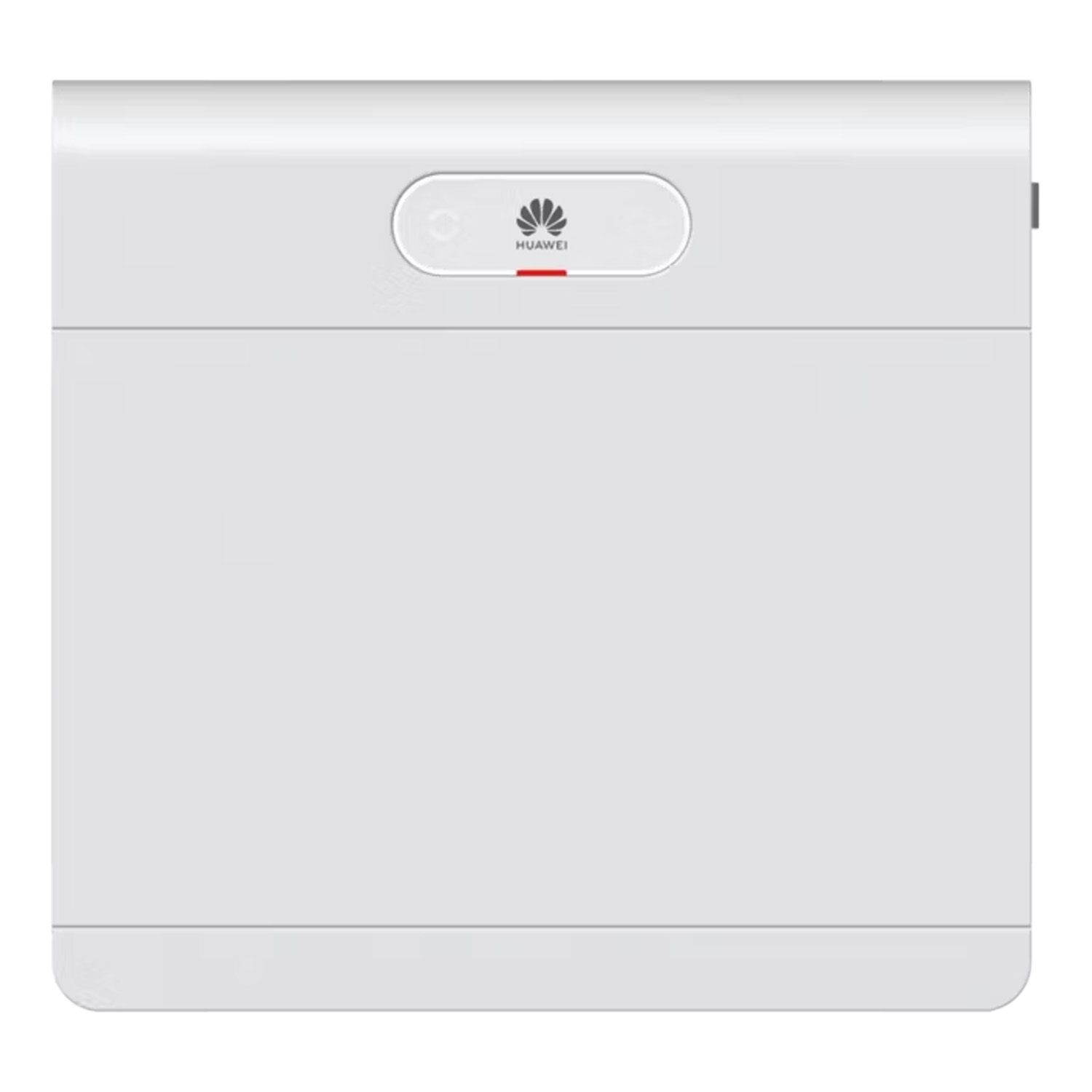

HUAWEI LUNA2000-10-C1 Control Module + HUAWEI LUNA2000-7-E1 Battery Module
SKU: F220U33
EAN: 2010000027363
| Manufacturer | |
|---|---|
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| CAN | Yes |
| FE | Yes |
| Capacity | |
| RS485 | Yes |
| Cell type | |
| Weight | 92,98 kg |
| CN | 85076000 |
Warranty Huawei LUNA2000-10-C1 BMS + Huawei LUNA2000-7-E1 battery extension
warranty-huawei-luna2000-10-c1-bms-huawei-luna2000-7-e1-battery-extension.pdf
Product details
| Manufacturer | |
|---|---|
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| CAN | Yes |
| FE | Yes |
| Capacity | |
| RS485 | Yes |
| Cell type | |
| Weight | 92,98 kg |
| CN | 85076000 |
Huawei LUNA2000-7/14/21-S1 Energy Storage System
The Huawei LUNA2000-7/14/21-S1 is a modern energy storage system designed to maximize energy efficiency and safety. Its modular design and advanced features make it an ideal solution for both households and small commercial installations.
Key Features:
- Flexible Capacity – Modules with a capacity of 6.9 kWh allow for scalable systems ranging from 6.9 kWh to 20.7 kWh. You can connect up to 4 modules to an inverter, resulting in a total capacity of up to 82.8 kWh.
- More Usable Energy – Deep discharge capability of up to 100% thanks to the built-in energy optimizer. Extended device lifespan and optimal energy management.
- 5-Level Safety Protection – Comprehensive protection at the cell, circuit, and overall structure level. The system provides active protection and reliability in emergency situations.
- User Advantages – Wide operating temperature range from -20°C to +55°C. Maximum charging and discharging power of 10.5 kW per module. The device operates quietly.
- Easy Installation – Absolute connection between modules, adjustable positioning, and quick startup. The intuitive installation process facilitates integration with existing PV systems.
- Aesthetic Design – Modern look with an intuitive LED indicator and ergonomic design, perfectly fitting into contemporary interiors and installations.
Why Choose LUNA2000-7/14/21-S1?
This energy storage system is an excellent choice for users who value reliability, safety, and flexibility in energy management. With its innovative design and scalability, the Huawei LUNA2000-7/14/21-S1 meets both current and future energy needs.
Warranty Huawei LUNA2000-10-C1 BMS + Huawei LUNA2000-7-E1 battery extension
warranty-huawei-luna2000-10-c1-bms-huawei-luna2000-7-e1-battery-extension.pdf
| LUNA2000-7-S1 | LUNA2000-14-S1 | LUNA2000-21-S1 | |
|---|---|---|---|
| Parameters | |||
| Power Module | LUNA2000-10KW-C1 | LUNA2000-10KW-C1 | LUNA2000-10KW-C1 |
| Number of Power Modules | 1 | 1 | 1 |
| Battery Module Energy | LUNA2000-7-E1 | LUNA2000-7-E1 | LUNA2000-7-E1 |
| Battery Module Capacity | 6.9 kWh | 6.9 kWh | 6.9 kWh |
| Number of Battery Modules | 1 | 2 | 3 |
| Usable Battery Energy | 6.9 kWh | 13.8 kWh | 20.7 kWh |
| Max Charge and Discharge Power | 3.5 kW | 7 kW | 10.5 kW |
| Operating Voltage Range (Single-phase System) | 350 – 560 V | 350 – 560 V | 350 – 560 V |
| Operating Voltage Range (Three-phase System) | 600 – 980 V | 600 – 980 V | 600 – 980 V |
| Communication | |||
| Display | State of Charge (SOC) Indicator, LED Indicator | State of Charge (SOC) Indicator, LED Indicator | State of Charge (SOC) Indicator, LED Indicator |
| Communication | RS485/FE/CAN | RS485/FE/CAN | RS485/FE/CAN |
| General Technical Data | |||
| Dimensions (W x D x H) | 590 mm x 255 mm x 510 mm | 590 mm x 255 mm x 870 mm | 590 mm x 255 mm x 1230 mm |
| Weight (with floor stand) | 80 kg | 148 kg | 216 kg |
| Power Module Dimensions (W x D x H) | 590 mm x 255 mm x 150 mm | 590 mm x 255 mm x 150 mm | 590 mm x 255 mm x 150 mm |
| Power Module Weight | 10 kg | 10 kg | 10 kg |
| Battery Module Dimensions (W x D x H) | 590 mm x 255 mm x 360 mm | 590 mm x 255 mm x 360 mm | 590 mm x 255 mm x 360 mm |
| Battery Module Weight | 68 kg | 68 kg | 68 kg |
| Mounting | Floor Stand (Standard), Wall Mount (Optional) | Floor Stand (Standard), Wall Mount (Optional) | Floor Stand (Standard), Wall Mount (Optional) |
| Operating Temperature | -20°C to +55°C (-4°F to +131°F) | -20°C to +55°C (-4°F to +131°F) | -20°C to +55°C (-4°F to +131°F) |
| Max Operating Altitude | 4000 m (13,123 ft) (Derating above 2000 m) | 4000 m (13,123 ft) (Derating above 2000 m) | 4000 m (13,123 ft) (Derating above 2000 m) |
| Mounting Environment | Outdoor/Indoor | Outdoor/Indoor | Outdoor/Indoor |
| Relative Humidity | 5% – 95% | 5% – 95% | 5% – 95% |
| Cooling | Natural Convection | Natural Convection | Natural Convection |
| Protection Class | IP 66 | IP 66 | IP 66 |
| Noise Emission Level | < 29 dB | < 29 dB | < 29 dB |
| Cell Type | Lithium Iron Phosphate (LiFePO4) | Lithium Iron Phosphate (LiFePO4) | Lithium Iron Phosphate (LiFePO4) |
| Scalability | Max. 4 systems operating in parallel | Max. 4 systems operating in parallel | Max. 4 systems operating in parallel |
| Compatible Inverters | SUN2000-12/15/17/20/25K-MB0, SUN2000-3/4/5/6/8/10KTL-M1, SUN2000-8/10K-LC0, SUN2000-2/3/3.68/4/4.6/5/6KTL-L1 | SUN2000-12/15/17/20/25K-MB0, SUN2000-3/4/5/6/8/10KTL-M1, SUN2000-8/10K-LC0, SUN2000-2/3/3.68/4/4.6/5/6KTL-L1 | SUN2000-12/15/17/20/25K-MB0, SUN2000-3/4/5/6/8/10KTL-M1, SUN2000-8/10K-LC0, SUN2000-2/3/3.68/4/4.6/5/6KTL-L1 |
| Compliance with Standards (More information available upon request) | |||
| Certifications | CE, RCM, CEC, VDE2510-50, IEC62619, IEC 60730, UN38.3, ISO13849, REACH, RoHS | CE, RCM, CEC, VDE2510-50, IEC62619, IEC 60730, UN38.3, ISO13849, REACH, RoHS | CE, RCM, CEC, VDE2510-50, IEC62619, IEC 60730, UN38.3, ISO13849, REACH, RoHS |
| Ordering and Delivery of Parts | |||
| Ordering Options | LUNA2000-7-E1, LUNA2000-10KW-C1, wall mounting bracket for LUNA2000-7/14/21-S1 | LUNA2000-7-E1, LUNA2000-10KW-C1, wall mounting bracket for LUNA2000-7/14/21-S1 | LUNA2000-7-E1, LUNA2000-10KW-C1, wall mounting bracket for LUNA2000-7/14/21-S1 |
