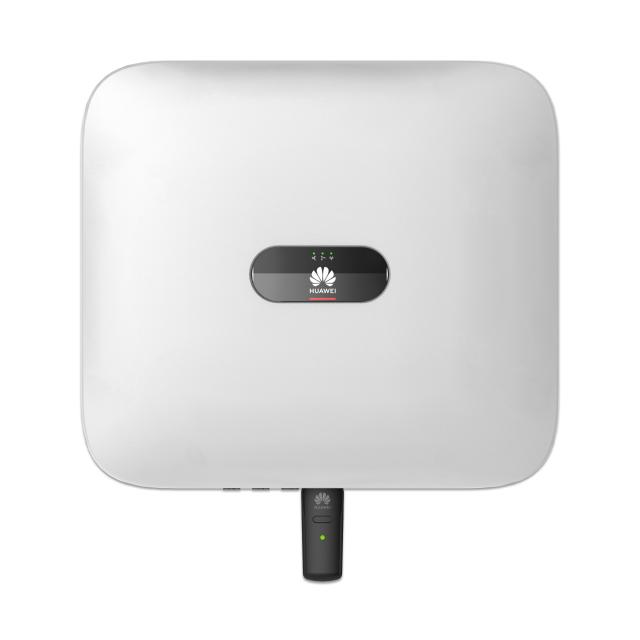

Inverter – HUAWEI – SUN 2000-6KTL-M1 – hybrid – HV

SKU: F220I1 EAN: 5905951580920

Huawei SUN 2000-6KTL-M1-HC (high current)

Manufacturer	HUAWEI
Rated power	6000 W
Power supply	3-phase
Hybrid device	Yes (Hybrid)
Off-grid mode	Yes
MPPT	2
Warranty	10 years
Net width	470 mm
Net depth	146,5 mm
Net height	525 mm
RS485	Yes
SPD Type II	Yes
AFCI	Yes
MPPT voltage range	140-980 V
Maximum input current per MPPT [A]	13,5 A
Maximum input power [W]	9000 W
European efficiency	97.7%
Weight	21,2 kg

Price 1 041,88 €
Incl. VAT

Certificate 1 - Inwerter HUAWEI SUN 2000-6KTL-M1-HC (high current) Certificate-CE-EMC-EN-4.pdf Certificate 2 - Inwerter HUAWEI SUN 2000-6KTL-M1-HC (high current) Certificate-CE-EN-5.pdf Datasheet Huawei SUN 2000-6KTL-M1-HC (high current) datasheet-huawei-sun-2000-6ktl-m1-hc-high-current.pdf Warranty Huawei SUN 2000-6KTL-M1-HC (high current) warranty-huawei-sun-2000-6ktl-m1-hc-high-current.pdf Declaration SUN-6K-G05 pvinverter_eudeclaration-sun-3-15k-g05sun-3-15k-g05-p2309270071_dz-3.pdf User - Inwerter HUAWEI SUN 2000-6KTL-M1-HC (high current) User-manual-SUN2000-3-10KTL-M1-HC-EN-2.pdf Certificate 4 - Inwerter HUAWEI SUN 2000-6KTL-M1-HC (high current) Certificate-IEC-61727-IEC-62116-EN-2.pdf Certificate 5 - Inwerter HUAWEI SUN 2000-6KTL-M1-HC (high current) Certificate-NC-RfG-EN-7.pdf Certificate SUN-6K-G05 certificate_germanyvde-ar-n4105_TUV_multi_cz-2.pdf G99 - Inwerter HUAWEI SUN 2000-6KTL-M1-HC (high current) G99-Certificate-of-Compliance-EN-7.pdf Certificate 6 - Inwerter HUAWEI SUN 2000-6KTL-M1-HC (high current) Certificate-SunSpec-SUN2000-3-10KTL-M1-EN-2.pdf G98 - Inwerter HUAWEI SUN 2000-6KTL-M1-HC (high current) G98-Certificate-of-Compliance-EN-2.pdf

Complementary products

Product details

Manufacturer	HUAWEI
Rated power	6000 W
Power supply	3-phase
Hybrid device	Yes (Hybrid)
Off-grid mode	Yes
MPPT	2
Warranty	10 years
Net width	470 mm
Net depth	146,5 mm
Net height	525 mm
RS485	Yes
SPD Type II	Yes
AFCI	Yes
MPPT voltage range	140-980 V
Maximum input current per MPPT [A]	13,5 A
Maximum input power [W]	9000 W
European efficiency	97.7%
Weight	21,2 kg

Huawei SUN2000-3/4/5/6/8/10KTL-M1 Inverters

The Huawei inverters from the SUN2000-3/4/5/6/8/10KTL-M1 series are modern devices designed for use in medium and large photovoltaic installations. With advanced features such as AI-supported protection, the ability to connect a battery, and flexible communication options, they ensure top performance and security for the system.

Key features of the Huawei SUN2000-3/4/5/6/8/10KTL-M1 inverters:

Active Protection – AI-supported protection against electrical arcs, ensuring the safety of the installation.
Higher Efficiency – Up to 30% higher energy yield thanks to the use of optimizers, significantly increasing system efficiency.
Flexible Communication – Support for WLAN, Fast Ethernet, and 4G technology enables advanced monitoring and management of the system in real-time.
Compact Design – The sleek and compact appearance makes the inverter easy to install and allows it to blend well with various installation types.

Who is this a good choice for?

The Huawei SUN2000-3/4/5/6/8/10KTL-M1 inverters are an ideal choice for medium and large commercial and industrial installations that require high performance and safety. The ability to integrate with energy storage systems and advanced protection features make these inverters perfectly suited for advanced photovoltaic systems.
