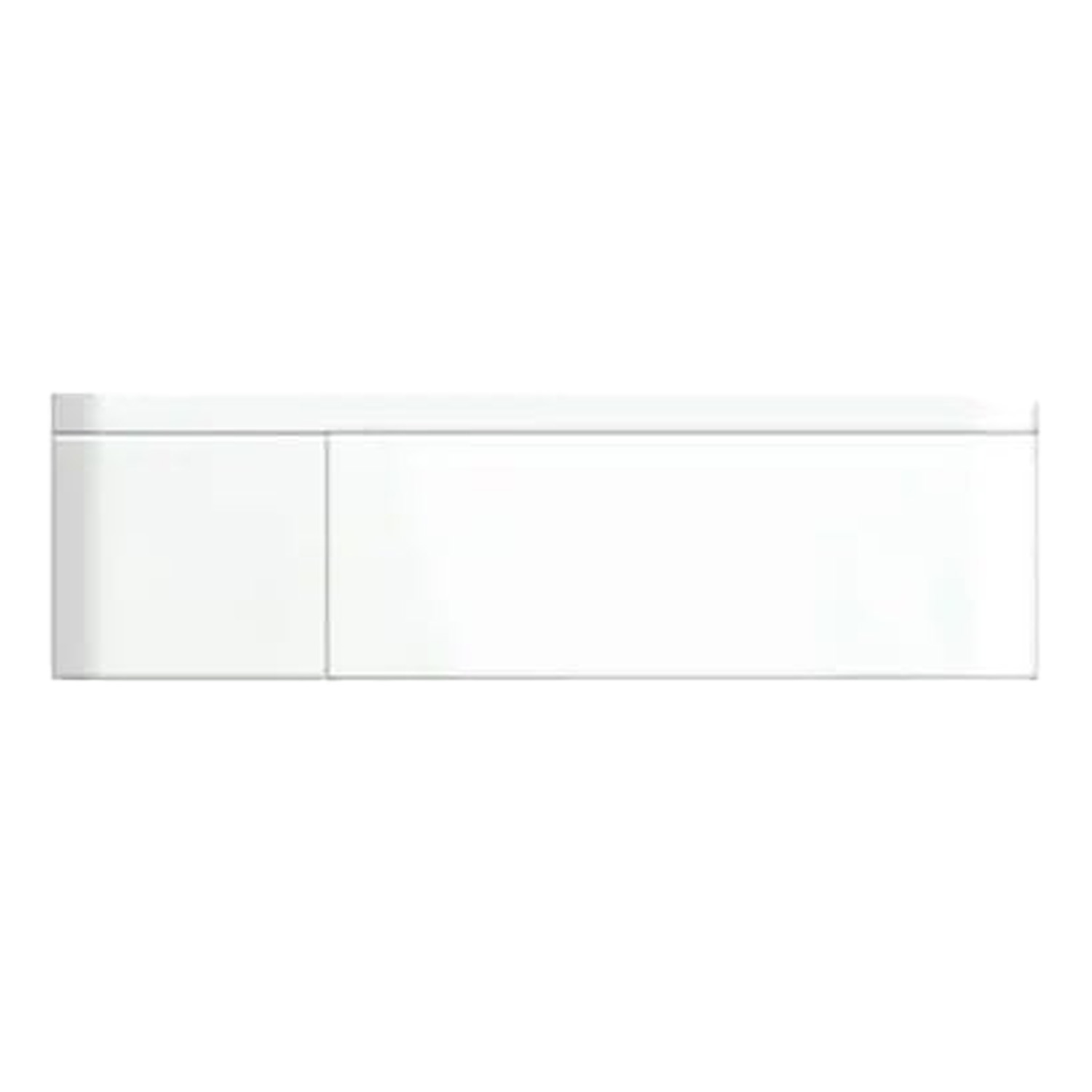

SOFAR GTX3000HV Battery Module 2.56kWh

SKU: F2A07 EAN: 5905951580692
SOFAR GTX3000HV Battery Module 2.56kWh
Manufacturer

Warranty

Net width

Net depth

Net height

Number of charging cycles

Capacity

Cell type

Weight36 kg
CN85076000

Login to place an order

1 060,80 €
Gross

Login to place an order

Safety datasheet Sofar GTX3000HV 2,56 kWh storage battery module safety-datasheet-sofar-gtx3000hv-256-kwh-storage-battery-module.pdf

Product details

Manufacturer

Warranty

Net width

Net depth

Net height

Number of charging cycles

Capacity

Cell type

Weight36 kg
CN85076000

Sofar AMASS GTX3000 – Energy Storage Battery

The Sofar AMASS GTX3000 energy storage battery is an advanced solution for storing electricity,
perfectly suited for a variety of photovoltaic installations. With the ability to work with
inverters from different manufacturers and system scalability, the GTX3000 offers flexibility and performance for many years of use.
Advanced technologies, such as remote diagnosis and real-time data monitoring, along with user-friendly operation, make
this battery an ideal choice for both residential and commercial users.

Key Product Features

  • Compatibility with various inverters: Provides versatility and a wide range of applications.
  • Parallel connection capability: Supports up to 4 devices, increasing the system’s capacity.
  • Energy storage for 6000 cycles: Long battery life ensures durability and reliability.
  • Easy installation: Quick setup saves time and reduces installation costs.
  • Remote diagnosis and monitoring: Enables real-time data control for greater safety and efficiency.
  • Safety certifications: Meets standards such as IEC62619, UN38.3, IEC62040-1, SAA, confirming its quality.

Who is this a good choice for?

The Sofar AMASS GTX3000 is the perfect solution for those seeking a reliable and scalable energy storage system.
With compatibility with various inverters and the ability to expand the system, this battery is ideal for both residential
and commercial photovoltaic installations. Its long life cycle, advanced monitoring features, and high safety levels make it an excellent choice for users who value quality, durability, and modern technology.

Safety datasheet Sofar GTX3000HV 2,56 kWh storage battery module safety-datasheet-sofar-gtx3000hv-256-kwh-storage-battery-module.pdf

Basic Parameters
ParameterGTX 3000-H4GTX 3000-H5GTX 3000-H6GTX 3000-H7GTX 3000-H8GTX 3000-H9GTX 3000-H10
Number of Batteries45678910
Nominal System Voltage (V)204.8 V256 V307.2 V358.4 V409.6 V460.8 V512 V
Nominal Energy of the System (100% DOD)10 kWh12.5 kWh15 kWh17.5 kWh20 kWh22.5 kWh25 kWh
Available Energy of the System (90% DOD)9 kWh11.25 kWh13.5 kWh15.75 kWh18 kWh20.25 kWh22.5 kWh
Dimensions515 × 480 × 770 mm515 × 480 × 895 mm515 × 480 × 1020 mm515 × 480 × 1145 mm515 × 480 × 1270 mm515 × 480 × 1395 mm515 × 480 × 1520 mm
Weight160 kg190 kg220 kg250 kg280 kg310 kg340 kg
Protection ClassIP66IP66IP66IP66IP66IP66IP66
CoolingNaturalNaturalNaturalNaturalNaturalNaturalNatural
Electrical Parameters
Nominal Voltage51.2 VDC51.2 VDC51.2 VDC51.2 VDC51.2 VDC51.2 VDC51.2 VDC
Nominal Capacity50 Ah50 Ah50 Ah50 Ah50 Ah50 Ah50 Ah
DOD<90%<90%<90%<90%<90%<90%<90%
Nominal Charging Current25 A25 A25 A25 A25 A25 A25 A
Maximum Continuous Charging Current30 A30 A30 A30 A30 A30 A30 A
Nominal Discharge Current25 A25 A25 A25 A25 A25 A25 A
Maximum Continuous Discharge Current30 A30 A30 A30 A30 A30 A30 A
Operating Temperature–20℃ ~ 60℃–20℃ ~ 60℃–20℃ ~ 60℃–20℃ ~ 60℃–20℃ ~ 60℃–20℃ ~ 60℃–20℃ ~ 60℃
Storage Temperature≤25℃, 12 months; ≤35℃, 6 months; ≤45℃, 3 months≤25℃, 12 months; ≤35℃, 6 months; ≤45℃, 3 months≤25℃, 12 months; ≤35℃, 6 months; ≤45℃, 3 months≤25℃, 12 months; ≤35℃, 6 months; ≤45℃, 3 months≤25℃, 12 months; ≤35℃, 6 months; ≤45℃, 3 months≤25℃, 12 months; ≤35℃, 6 months; ≤45℃, 3 months≤25℃, 12 months; ≤35℃, 6 months; ≤45℃, 3 months
Humidity≤95% RH (non-condensing)≤95% RH (non-condensing)≤95% RH (non-condensing)≤95% RH (non-condensing)≤95% RH (non-condensing)≤95% RH (non-condensing)≤95% RH (non-condensing)
Maximum Operating Height≤2000 m above sea level≤2000 m above sea level≤2000 m above sea level≤2000 m above sea level≤2000 m above sea level≤2000 m above sea level≤2000 m above sea level
Certifications
CertificationUN38.3, IEC62619, IEC62040-1, SAAUN38.3, IEC62619, IEC62040-1, SAAUN38.3, IEC62619, IEC62040-1, SAAUN38.3, IEC62619, IEC62040-1, SAAUN38.3, IEC62619, IEC62040-1, SAAUN38.3, IEC62619, IEC62040-1, SAAUN38.3, IEC62619, IEC62040-1, SAA
Life Cycle6000 cycles @ 80% DOD / 25℃ / 0.5C, 60% EOL6000 cycles @ 80% DOD / 25℃ / 0.5C, 60% EOL6000 cycles @ 80% DOD / 25℃ / 0.5C, 60% EOL6000 cycles @ 80% DOD / 25℃ / 0.5C, 60% EOL6000 cycles @ 80% DOD / 25℃ / 0.5C, 60% EOL6000 cycles @ 80% DOD / 25℃ / 0.5C, 60% EOL6000 cycles @ 80% DOD / 25℃ / 0.5C, 60% EOL
